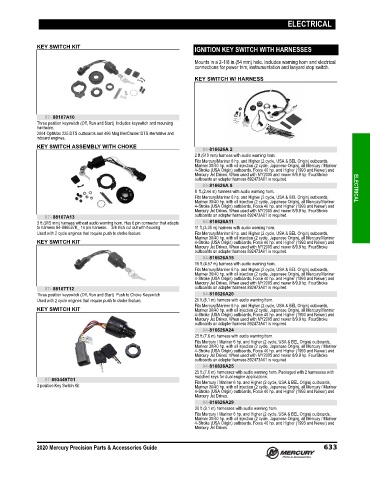

Page 642 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

KEY SWITCH KIT
IGNITION KEY SWITCH WITH HARNESSES
Mounts in a 2‑1/8 in.(54 mm) hole. Includes warning horn and electrical
connections for power trim, instrumentation and lanyard stop switch.

KEY SWITCH W/ HARNESS

87- 88107A10
Three position keyswitch (Off, Run and Start) Includes keyswitch and mounting
hardware.
2004 OptiMax 225 DTS outboards and 496 Mag MerCruiser DTS sterndrive and
inboard engines.
KEY SWITCH ASSEMBLY WITH CHOKE
84-816626A 2
2 ft.(610 mm) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
84-816626A 8 ELECTRICAL
8 ft.(2.44 m) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
87- 88107A13 outboards an adapter harness 892473A01 is required.
3 ft.(915 mm) harness without audio warning horn. Has 6 pin connector that adapts 84-816626A11
to harness 84‑896537K_ 14 pin harness. 3/4 inch cut out with housing 11 ft.(3.35 m) harness with audio warning horn.
Used with 2 cycle engines that require push to choke feature. Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
KEY SWITCH KIT 4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
84-816626A15
15 ft.(4.57 m) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
87- 88107T12 outboards an adapter harness 892473A01 is required.
Three position keyswitch (Off, Run and Start) Push to Choke Keyswitch 84-816626A20
Used with 2 cycle engines that require push to choke feature. 20 ft.(6.1 m) harness with audio warning horn.
Fits Mercury/Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
KEY SWITCH KIT Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury/Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
84-816626A24
25 ft.(7.6 m) harness with audio warning horn.
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives. When used with MY2005 and newer 8/9.9 hp. FourStroke
outboards an adapter harness 892473A01 is required.
84-816626A25
25 ft.(7.6 m) harnesses with audio warning horn. Packaged with 2 harnesses with
matched keys for dual engine applications.
87-893449T01 Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
3 position Key Switch Kit Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives.
84-816626A29
30 ft.(9.1 m) harnesses with audio warning horn.
Fits Mercury / Mariner 6 hp. and Higher (2 cycle, USA & BEL Origin) outboards,
Mariner 30/40 hp. with oil injection (2 cycle, Japanese Origin), all Mercury / Mariner
4‑Stroke (USA Origin) outboards, Force 40 hp. and Higher (1993 and Newer) and
Mercury Jet Drives.
