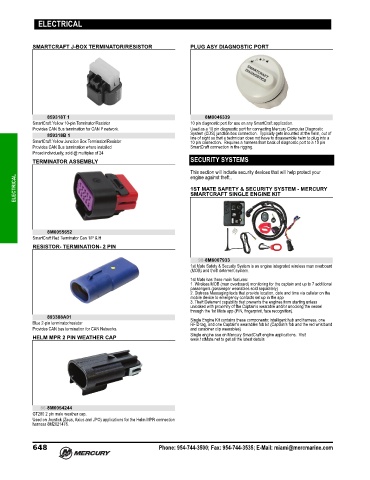

P. 657
ELECTRICAL
SMARTCRAFT J-BOX TERMINATOR/RESISTOR PLUG ASY DIAGNOSTIC PORT
859318T 1 8M0046339
SmartCraft Yellow 10‑pin Terminator/Resistor 10 pin diagnostic port for use on any SmartCraft application.
Provides CAN Bus termination for CAN P network. Used as a 10 pin diagnostic port for connecting Mercury Computer Diagnostic
859318B 1 System (CDS) junction box connection. Typically gets mounted at the helm, out of
line of sight so that a technician does not have to disassemble helm to plug into a
SmartCraft Yellow Junction Box Terminator/Resistor 10 pin connection. Requires a harness from back of diagnostic port to a 10 pin
Provides CAN Bus termination where installed SmartCraft connection in the rigging.
Priced individually, sold @ multiples of 24
TERMINATOR ASSEMBLY SECURITY SYSTEMS
This section will include security devices that will help protect your
engine against theft..
ELECTRICAL 1ST MATE SAFETY & SECURITY SYSTEM - MERCURY
SMARTCRAFT SINGLE ENGINE KIT
8M0055652
SmartCraft Red Terminator Can 1/P & H
RESISTOR- TERMINATION- 2 PIN
98-8M6007933
1st Mate Safety & Security System is an engine integrated wireless man overboard
(MOB) and theft deterrent system.
1st Mate has three main features:
1. Wireless MOB (man overboard) monitoring for the captain and up to 7 additional
passengers (passenger wearables sold separately)
2. Distress Messaging texts that provide location, date and time via cellular on the
mobile device to emergency contacts set up in the app
3. Theft Deterrent capability that prevents the engines from starting unless
unlocked with proximity of the Captain's wearable and/or unocking the vessel
through the 1st Mate app (PIN, fingerprint, face recognition).
893388A01 Single Engine Kit contains these components: intelligent hub and harness, one
Blue 2‑pin terminator/resistor RFID tag, and one Captain's wearables fob kit (Captain's fob and the red wristband
Provides CAN bus termination for CAN Networks. and carabiner clip wearables)
Single engine use on Mercury SmartCraft engine applications. Visit
HELM MPR 2 PIN WEATHER CAP www.1stMate.net to get all the latest details
86-8M0054244
GT280 2 pin male weather cap.
Used on Joystick (Zeus, Axius and JPO) applications for the Helm MPR connection
harness 8M2021476.
648 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
