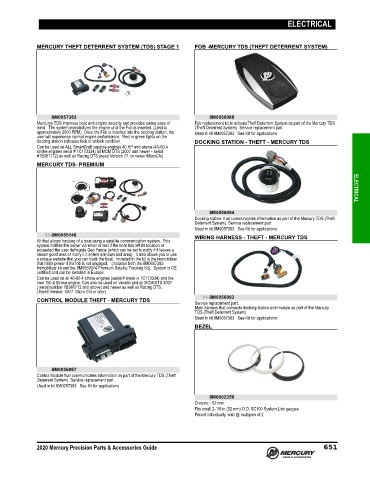

Page 660 - Latin America Accessories Guide (2020) - 8M0163252

ELECTRICAL

MERCURY THEFT DETERRENT SYSTEM (TDS) STAGE 1 FOB -MERCURY TDS (THEFT DETERRENT SYSTEM)

8M0057383 8M0056988
Mercurys TDS improves boat and engine security and provides owner ease of Fob replacement kit to activateTheft Deterrent System as part of the Mercury TDS
mind. The system immobolizes the engine until the Fob is inserted. (Limit to (Theft Deterrent System) Service replacement part
approximately 2000 RPM) Once the Fob is inserted into the docking station; the Used in kit 8M0057383 See Kit for applications
user will experience normal engine performance. Red or green lights on the
docking station indicates lock or unlock condition. DOCKING STATION - THEFT - MERCURY TDS
Can be used on ALL SmartCraft capable engines 40 HP and above (40‑60 4
stroke engines serial # 1C173334) all MCM DTS (2007 and newer ‑ serial
#1B381712) as well as Racing DTS (need Version 77 or newer MicroChi)
MERCURY TDS- PREMIUM ELECTRICAL

8M0056994
Docking station that communicates information as part of the Mercury TDS (Theft
Deterrent System) Service replacement part
Used in kit 8M0057383 See Kit for applications
98-8M0065146 WIRING HARNESS - THEFT - MERCURY TDS
Kit that allows tracking of a boat using a satellite communication system. This
system notifies the owner via email or text if the boat has left its location or
exceeded the user definiable Geo Fence (which can be set to notify if it leaves a
known good area or notify it it enters a known bad area). It also allows you to use
a unique website that you can track the boat. Included in the kit is the immobilizer
that limits power if the fob is not engaged. (includes both the 8M0057383
Immobilizer kit and the 8M0059374 Premium Satelite Tracking Kit). System is CE
certified and can be installed in Europe.
Can be used on all 40‑60 4 stroke engines (serial # break is 1C173334) and the
new 150 4 Stroke engine. Can also be used on Verado and all MCM DTS 2007
( serial number 1B381712 and above) and newer as well as Racing DTS .
( Need Version 0077 Micro Chi or later)
84-8M0056993
CONTROL MODULE THEFT - MERCURY TDS
Service replacement part.
Main harness that connects docking station and module as part of the Mercury
TDS (Theft Deterrent System)
Used in kit 8M0057383 See Kit for applications
BEZEL

8M0056987
Control Module that communicates information as part of the Mercury TDS (Theft
Deterrent System) Service replacement part
Used in kit 8M0057383 See Kit for applications
8M6002359
Chrome ‑ 52 mm
Fits small 2‑1/8 in.(52 mm) O.D. SC100 System Link gauges
Priced individually, sold @ multiples of 2

2020 Mercury Precision Parts & Accessories Guide 651
