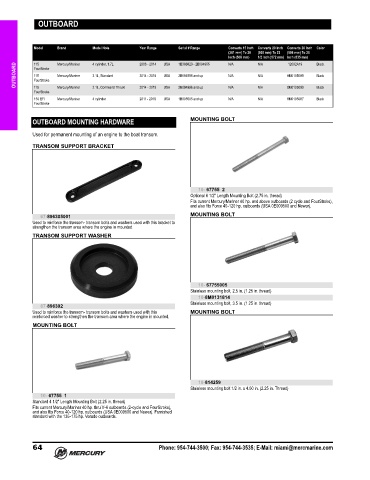

Page 73 - Latin America Accessories Guide (2020) - 8M0163252

OUTBOARD

Model Brand Model Note Year Range Serial # Range Converts 15 Inch Converts 20 Inch Converts 20 Inch Color
(381 mm) To 20 (508 mm) To 22 (508 mm) To 25
Inch (508 mm) 1/2 Inch (572 mm) Inch (635 mm) Black
4 cylinder, 1.7L
2006 - 2014
Mercury/Mariner
115
N/A
12092A19
N/A
USA
1B366823 - 2B094955
OUTBOARD FourStroke Mercury/Mariner 2.1L, Standard 2014 - 2019 USA 2B094996 and up N/A N/A 8M0105089 Black
115
FourStroke
115
FourStroke Mercury/Mariner 2.1L, Command Thrust 2014 - 2019 USA 2B094996 and up N/A N/A 8M0105090 Black
150 EFI Mercury/Mariner 4 cylinder 2011 - 2019 USA 1B905505 and up N/A N/A 8M0105087 Black
FourStroke
OUTBOARD MOUNTING HARDWARE MOUNTING BOLT
Used for permanent mounting of an engine to the boat transom.
TRANSOM SUPPORT BRACKET

10- 67755 2
Optional 6 1/2" Length Mounting Bolt (2.75 in. thread)
Fits current Mercury/Mariner 40 hp. and above outboards (2 cycle and FourStroke),
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer).
67-896305001 MOUNTING BOLT
Used to reinforce the transom‑ transom bolts and washers used with this bracket to
strengthen the transom area where the engine in mounted.
TRANSOM SUPPORT WASHER

10- 67755005
Stainless mounting bolt, 2.5 in. (1.25 in. thread)
10-8M0131814
Stainless mounting bolt, 3.5 in. (1.25 in. thread)
67-896392
Used to reinforce the transom‑ transom bolts and washers used with this MOUNTING BOLT
reinforced washer to strengthen the transom area where the engine in mounted.
MOUNTING BOLT

10-814259
Stainless mounting bolt 1/2 in. x 4.00 in. (2.25 in. Thread)
10- 67755 1
Standard 4 1/2" Length Mounting Bolt (2.25 in. thread)
Fits current Mercury/Mariner 40 hp. thru V‑6 outboards (2‑cycle and FourStroke),
and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer). Furnished
standard with the 135‑175 hp. Verado outboards.

64 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
