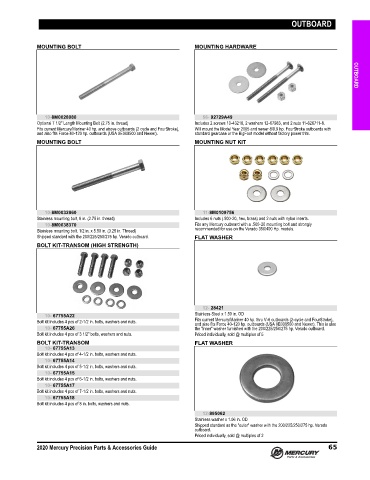

Page 74 - Latin America Accessories Guide (2020) - 8M0163252
P. 74

OUTBOARD



             MOUNTING BOLT                                       MOUNTING HARDWARE                                    OUTBOARD













                10-8M0028080                                        56- 92729A49
             Optional 7 1/2" Length Mounting Bolt (2.75 in. thread)  Includes 2 screws 10‑43216, 2 washers 12‑67983, and 2 nuts 11‑826711‑8.
             Fits current Mercury/Mariner 40 hp. and above outboards (2 cycle and FourStroke),  Will mount the Model Year 2005 and newer 8/9.9 hp. FourStroke outboards with
             and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer).  standard gearcase or the BigFoot model without factory power trim.
             MOUNTING BOLT                                       MOUNTING NUT KIT












                10-8M0032860                                        11-8M0109756
             Stainless mounting bolt, 8 in. (2.75 in. thread)    Includes 6 nuts (.500‑20, hex, brass) and 2 nuts with nylon inserts.
                10-8M0038370                                     Fits any Mercury outboard with a .500‑20 mounting bolt and strongly
             Stainless mounting bolt, 1/2 in. x 5.50 in. (3.25 in. Thread)  recommended for use on the Verado 350/400 Hp. models.
             Shipped standard with the 200/225/250/275 hp. Verado outboard.  FLAT WASHER
             BOLT KIT-TRANSOM (HIGH STRENGTH)











                                                                    12- 28421
                                                                 Stainless Steel x 1.50 in. OD
                10- 67755A22
             Bolt kit includes 4 pcs of 2‑1/2 in. bolts, washers and nuts.  Fits current Mercury/Mariner 40 hp. thru V‑6 outboards (2‑cycle and FourStroke),
                                                                 and also fits Force 40‑120 hp. outboards (USA 0E009500 and Newer). This is also
                10- 67755A26                                     the "inner" washer furnished with the 200/225/250/275 hp. Verado outboard.
             Bolt kit includes 4 pcs of 3 1/2" bolts, washers and nuts.  Priced individually, sold @ multiples of 5
             BOLT KIT-TRANSOM                                    FLAT WASHER
                10- 67755A13
             Bolt kit includes 4 pcs of 4‑1/2 in. bolts, washers and nuts.
                10- 67755A14
             Bolt kit includes 4 pcs of 5‑1/2 in. bolts, washers and nuts.
                10- 67755A15
             Bolt kit includes 4 pcs of 6‑1/2 in. bolts, washers and nuts.
                10- 67755A17
             Bolt kit includes 4 pcs of 7‑1/2 in. bolts, washers and nuts.
                10- 67755A18
             Bolt kit includes 4 pcs of 8 in. bolts, washers and nuts.
                                                                    12-895062
                                                                 Stainless washer x 1.06 in. OD
                                                                 Shipped standard as the "outer" washer with the 200/225/250/275 hp. Verado
                                                                 outboard.
                                                                 Priced individually, sold @ multiples of 2

             2020 Mercury Precision Parts & Accessories Guide                                                 65
   69   70   71   72   73   74   75   76   77   78   79
