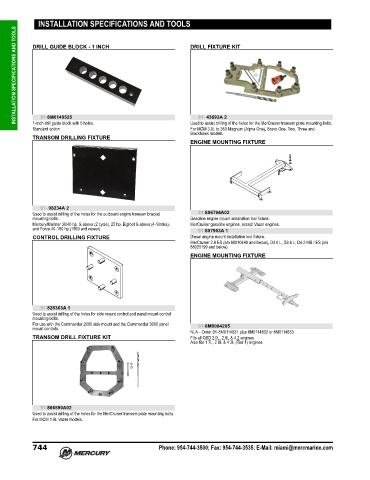

INSTALLATION SPECIFICATIONS AND TOOLS DRILL FIXTURE KIT
INSTALLATION SPECIFICATIONS AND TOOLS

DRILL GUIDE BLOCK - 1 INCH

91- 43693A 2
91-8M0149525
1‑Inch drill guide block with 5 holes.
For MCM 3.0L to 350 Magnum (Alpha One), Bravo One, Two, Three and
Standard option Used to assist drilling of the holes for the MerCruiser transom plate mounting bolts.
Blackhawk models.
TRANSOM DRILLING FIXTURE
ENGINE MOUNTING FIXTURE

91- 98234A 2
Used to assist drilling of the holes for the outboard engine transom bracket 91-806794A02
mounting bolts. Gasoline engine mount installation tool fixture.
Mercury/Mariner 30/40 hp. & above (2 cycle), 25 hp. Bigfoot & above (4‑Stroke), MerCruiser gasoline engines, except Vazer engines.
and Force 40‑150 hp (1993 and newer). 91-807903A 1
CONTROL DRILLING FIXTURE Diesel engine mount installation tool fixture.
MerCruiser 2.8 ES (s/n 88010499 and below), D3.0 L, D3.6 L; D4.2 MS / ES (s/n
88020199 and below)
ENGINE MOUNTING FIXTURE

91-828363A 1
Used to assist drilling of the holes for side mount control and panel mount control
mounting bolts.
For use with the Commander 2000 side mount and the Commander 3000 panel 91-8M0084205
mount controls.
NLA ‑ Order 91‑8M0114831 plus 8M0114832 or 8M0114833
TRANSOM DRILL FIXTURE KIT Fits all QSD 2.0L, 2.8L & 4.2 engines
Also fits 1.7L, 2.8L & 4.2L (Tier 1) engines

91-866590A02
Used to assist drilling of the holes for the MerCruiser transom plate mounting bolts.
For MCM 1.6L Vazer models.

744 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
