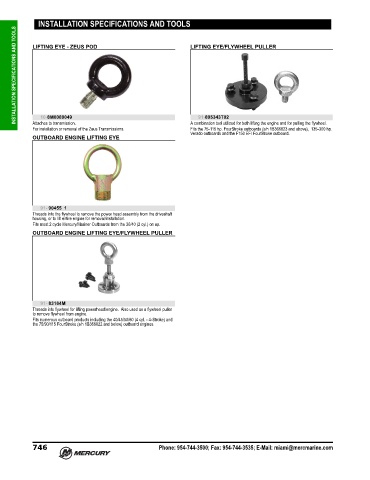

Page 755 - Latin America Accessories Guide (2020) - 8M0163252
P. 755
INSTALLATION SPECIFICATIONS AND TOOLS LIFTING EYE/FLYWHEEL PULLER
INSTALLATION SPECIFICATIONS AND TOOLS
LIFTING EYE - ZEUS POD
91-895343T02
10-8M0080049
Attaches to transmission.
Fits the 75‑115 hp. FourStroke outboards (s/n 1B366823 and above), 135‑300 hp.
For installation or removal of the Zeus Transmissions. A combination tool utilized for both lifting the engine and for pulling the flywheel.
Verado outboards and the F150 EFI FourStroke outboard.
OUTBOARD ENGINE LIFTING EYE
91- 90455 1
Threads into the flywheel to remove the power head assembly from the driveshaft
housing, or to lift entire engine for removal/installation.
Fits most 2 cycle Mercury/Mariner Outboards from the 30/40 (2 cyl.) on up.
OUTBOARD ENGINE LIFTING EYE/FLYWHEEL PULLER
91- 83164M
Threads into flywheel for lifting powerhead/engine. Also used as a flywheel puller
to remove flywheel from engine.
Fits numerous outboard products including the 40/45/50/60 (4 cyl. ‑ 4‑Stroke) and
the 75/90/115 FourStroke (s/n 1B366822 and below) outboard engines.
746 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
