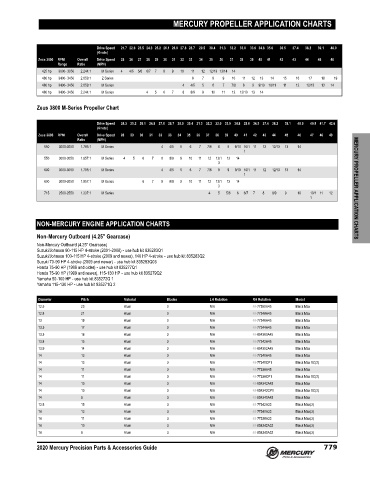

MERCURY PROPELLER APPLICATION CHARTS

Drive Speed 21.7 22.6 23.5 24.3 25.2 26.1 26.9 27.8 28.7 29.5 30.4 31.3 32.2 33.0 33.9 34.8 35.6 36.5 37.4 38.2 39.1 40.0
(Knots)
Zeus 3500 RPM Overall Drive Speed 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
Range Ratio (MPH)
425 hp 3000- 3050 2.244:1 M Series 4 4/5 5/6 6/7 7 8 9 10 11 12 12/13 13/14 14
480 hp 3400- 3450 2.059:1 Z Series 6 7 8 9 10 11 12 13 14 15 16 17 18 19
480 hp 3400- 3450 2.059:1 M Series 4 4/5 5 6 7 7/8 8 9 9/10 10/11 11 12 12/13 13 14
480 hp 3400- 3450 2.244:1 M Series 4 5 6 7 8 8/9 9 10 11 12 12/13 13 14

Zeus 3800 M‑Series Propeller Chart

Drive Speed 24.3 25.2 26.1 26.9 27.8 28.7 29.5 30.4 31.3 32.2 33.0 33.9 34.8 35.6 36.5 37.4 38.2 39.1 40.0 40.8 41.7 42.6
(Knots)
Zeus 3800 RPM Overall Drive Speed 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49
Ratio (MPH)
550 3000-3050 1.795:1 M Series 4 4/5 5 6 7 7/8 8 9 9/10 10/1 11 12 12/13 13 14
1
550 3000-3050 1.957:1 M Series 4 5 6 7 8 8/9 9 10 11 12 12/1 13 14
3
600 3000-3050 1.795:1 M Series 4 4/5 5 6 7 7/8 8 9 9/10 10/1 11 12 12/13 13 14
1
600 3000-3050 1.957:1 M Series 6 7 8 8/9 9 10 11 12 12/1 13 14
3 MERCURY PROPELLER APPLICATION CHARTS
715 2500-2550 1.337:1 M Series 4 5 5/6 6 6/7 7 8 8/9 9 10 10/1 11 12
1

NON-MERCURY ENGINE APPLICATION CHARTS

Non‑Mercury Outboard (4.25" Gearcase)
Non‑Mercury Outboard (4.25" Gearcase)
Suzuki/Johnson 90‑115 HP 4‑stroke (2001‑2008) ‑ use hub kit 835283Q1
Suzuki/Johnson 100‑115 HP 4‑stroke (2009 and newer), 140 HP 4‑stroke ‑ use hub kit 835283Q2
Suzuki 70‑90 HP 4‑stroke (2009 and newer) ‑ use hub kit 835283Q03
Honda 75‑90 HP (1998 and older) ‑ use hub kit 835277Q1
Honda 75‑90 HP (1999 and newer), 115‑130 HP ‑ use hub kit 835279Q2
Yamaha 50‑100 HP ‑ use hub kit 835272Q 1
Yamaha 115‑130 HP ‑ use hub kit 835271Q 2

Diameter Pitch Material Blades LH Rotation RH Rotation Model
12.5 23 Alum 3 N/A 48-77350A45 Black Max
12.8 21 Alum 3 N/A 48-77348A45 Black Max
13 19 Alum 3 N/A 48-77346A45 Black Max
13.3 17 Alum 3 N/A 48-77344A45 Black Max
13.3 16 Alum 3 N/A 48-854360A45 Black Max
13.8 15 Alum 3 N/A 48-77342A45 Black Max
13.9 14 Alum 3 N/A 48-854352A45 Black Max
14 13 Alum 3 N/A 48-77340A45 Black Max
14 13 Alum 3 N/A 48-77340CP1 Black Max XC(2)
14 11 Alum 3 N/A 48-77338A45 Black Max
14 11 Alum 3 N/A 48-77338CP1 Black Max XC(2)
14 10 Alum 3 N/A 48-854342A45 Black Max
14 10 Alum 3 N/A 48-854342CP1 Black Max XC(2)
14 9 Alum 3 N/A 48-854340A45 Black Max
13.8 15 Alum 3 N/A 48-77342A33 Black Max(3)
14 13 Alum 3 N/A 48-77340A33 Black Max(3)
14 11 Alum 3 N/A 48-77338A33 Black Max(3)
14 10 Alum 3 N/A 48-854342A33 Black Max(3)
14 9 Alum 3 N/A 48-854340A33 Black Max(3)

2020 Mercury Precision Parts & Accessories Guide 779
