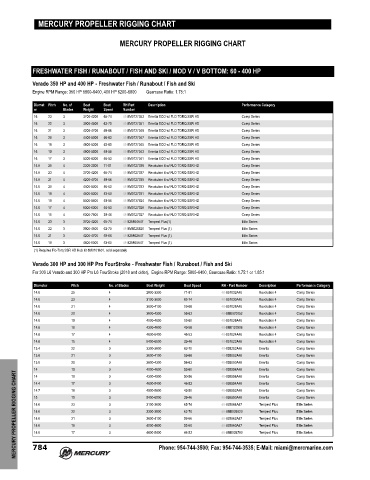

MERCURY PROPELLER RIGGING CHART

MERCURY PROPELLER RIGGING CHART

FRESHWATER FISH / RUNABOUT / FISH AND SKI / MOD V / V BOTTOM: 60 - 400 HP
Verado 350 HP and 400 HP ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 350 HP 5800‑6400, 400 HP 6200‑6800 Gearcase Ratio: 1.75:1

Diamet Pitch No. of Boat Boat RH Part Description Performance Category
er Blades Weight Speed Number
16 23 3 3700-4200 65-74 48-8M0127053 Enertia ECO w/ FLO TORQ SSR HD Comp Series
16 22 3 3900-4500 63-70 48-8M0127051 Enertia ECO w/ FLO TORQ SSR HD Comp Series
16 21 3 4200-4700 59-66 48-8M0127049 Enertia ECO w/ FLO TORQ SSR HD Comp Series
16 20 3 4400-5000 56-63 48-8M0127047 Enertia ECO w/ FLO TORQ SSR HD Comp Series
16 19 3 4600-5300 53-60 48-8M0127045 Enertia ECO w/ FLO TORQ SSR HD Comp Series
16 18 3 4900-5800 49-55 48-8M0127043 Enertia ECO w/ FLO TORQ SSR HD Comp Series
16 17 3 5300-6300 46-53 48-8M0127041 Enertia ECO w/ FLO TORQ SSR HD Comp Series
14.6 25 4 3300-3800 71-81 48-8M0127039 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.6 23 4 3700-4200 65-74 48-8M0127037 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.6 21 4 4200-4700 59-66 48-8M0127035 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.6 20 4 4400-5000 56-63 48-8M0127033 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.6 19 4 4600-5300 53-60 48-8M0127031 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.6 18 4 5000-5600 49-56 48-8M0137924 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.6 17 4 5300-6300 46-53 48-8M0127029 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.6 15 4 6300-7500 39-46 48-8M0127027 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.6 23 3 3700-4200 65-74 48-825864A47 Tempest Plus(1) Elite Series
14.6 22 3 3900-4500 62-70 48-8M8026820 Tempest Plus (1) Elite Series
14.6 21 3 4200-4700 59-66 48-825862A47 Tempest Plus (1) Elite Series
14.6 19 3 4600-5300 53-60 48-825860A47 Tempest Plus (1) Elite Series
(1) Requires Flo-Torq SSR HD Hub kit 8M0101601, sold separately

Verado 300 HP and 300 HP Pro FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
For 300 L6 Verado and 300 HP Pro L6 FourStroke (2018 and older), Engine RPM Range: 5800‑6400, Gearcase Ratio: 1.75:1 or 1.85:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.6 25 4 2800-3300 71-81 48-857032A46 Revolution 4 Comp Series
14.6 23 4 3100-3600 65-74 48-857030A46 Revolution 4 Comp Series
14.6 21 4 3600-4100 59-66 48-857028A46 Revolution 4 Comp Series
14.6 20 4 3800-4300 56-63 48-8M0070052 Revolution 4 Comp Series
14.6 19 4 4000-4600 53-60 48-857026A46 Revolution 4 Comp Series
14.6 18 4 4300-4800 49-56 48-8M0137906 Revolution 4 Comp Series
14.6 17 4 4600-5400 46-53 48-857024A46 Revolution 4 Comp Series
14.6 15 4 5400-6500 39-46 48-857022A46 Revolution 4 Comp Series
13.4 22 3 3300-3800 62-70 48-899202A46 Enertia Comp Series
13.6 21 3 3600-4100 59-66 48-899002A46 Enertia Comp Series
13.8 20 3 3800-4300 56-63 48-899000A46 Enertia Comp Series
14 19 3 3 3 3 4000-4600 53-60 48-898998A46 Enertia Comp Series
MERCURY PROPELLER RIGGING CHART 784 15 3 3 3 3 3 3 5400-6500 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
4300-4900
18
Enertia
Comp Series
50-56
48-898996A46
14
Enertia
14.4
48-898994A46
4600-5400
Comp Series
17
46-53
43-50
4900-5800
Enertia
14.7
16
Comp Series
48-898992A46
39-46
15
Enertia
Comp Series
48-898990A46
48-825864A47
65-74
14.6
Tempest Plus
23
Elite Series
3100-3600
48-8M8026820
Tempest Plus
3300-3800
14.6
22
62-70
Elite Series
59-66
21
Tempest Plus
3600-4100
48-825862A47
Elite Series
14.6
14.6
Tempest Plus
4000-4600
48-825860A47
53-60
19
Elite Series
Elite Series
4600-5400
17
14.6
Tempest Plus
48-8M8026790
46-53
