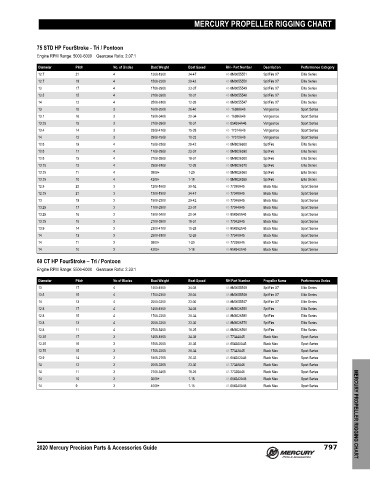

MERCURY PROPELLER RIGGING CHART

75 STD HP FourStroke ‑ Tri / Pontoon
Engine RPM Range: 5000‑6000 Gearcase Ratio: 2.07:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
12.7 21 4 1300-1900 34-47 48-8M0055551 SpitFire X7 Elite Series
12.7 19 4 1500-2300 29-42 48-8M0055550 SpitFire X7 Elite Series
13 17 4 1700-2900 23-37 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 2100-3900 18-31 48-8M0055548 SpitFire X7 Elite Series
14 13 4 2500-6100 12-26 48-8M0055547 SpitFire X7 Elite Series
13 18 3 1600-2500 26-40 48- 16988A46 Vengeance Sport Series
13.1 16 3 1900-3400 20-34 48- 16986A46 Vengeance Sport Series
13.25 15 3 2100-3900 18-31 48-854354A46 Vengeance Sport Series
13.4 14 3 2300-4700 15-28 48- 17314A46 Vengeance Sport Series
14 12 3 2900-7500 10-23 48- 17312A46 Vengeance Sport Series
12.8 19 4 1500-2300 29-42 48-8M8026600 SpitFire Elite Series
12.8 17 4 1700-2900 23-37 48-8M8026590 SpitFire Elite Series
12.8 15 4 2100-3900 18-31 48-8M8026580 SpitFire Elite Series
13.75 13 4 2500-6100 12-26 48-8M8026570 SpitFire Elite Series
13.75 11 4 3800+ 1-20 48-8M8026560 SpitFire Elite Series
13.75 10 4 4200+ 1-18 48-8M8026555 SpitFire Elite Series
12.5 23 3 1200-1600 39-52 48-77350A45 Black Max Sport Series
12.75 21 3 1300-1900 34-47 48-77348A45 Black Max Sport Series
13 19 3 1500-2300 29-42 48-77346A45 Black Max Sport Series
13.25 17 3 1700-2900 23-37 48-77344A45 Black Max Sport Series
13.25 16 3 1900-3400 20-34 48-854360A45 Black Max Sport Series
13.75 15 3 2100-3900 18-31 48-77342A45 Black Max Sport Series
13.9 14 3 2300-4700 15-28 48-854352A45 Black Max Sport Series
14 13 3 2500-6100 12-26 48-77340A45 Black Max Sport Series
14 11 3 3800+ 1-20 48-77338A45 Black Max Sport Series
14 10 3 4200+ 1-18 48-854342A45 Black Max Sport Series
60 CT HP FourStroke – Tri / Pontoon
Engine RPM Range: 5500‑6000 Gearcase Ratio: 2.33:1
Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Series
13 17 4 1400-1800 34-38 48-8M0055549 SpitFire X7 Elite Series
13.5 15 4 1700-2300 28-34 48-8M0055548 SpitFire X7 Elite Series
14 13 4 2000-3300 23-30 48-8M0055547 SpitFire X7 Elite Series
12.8 17 4 1400-1800 34-38 48-8M8026590 SpitFire Elite Series
12.8 15 4 1700-2300 28-34 48-8M8026580 SpitFire Elite Series
13.8 13 4 2000-3300 23-30 48-8M8026570 SpitFire Elite Series
13.8 11 4 2700-5400 18-25 48-8M8026560 SpitFire Elite Series
13.25 17 3 1400-1800 34-38 48-77344A45 Black Max Sport Series
13.25 16 3 1500-2000 30-36 48-854360A45 Black Max Sport Series
13.75 15 3 1700-2300 28-34 48-77342A45 Black Max Sport Series
13.9 14 3 1800-2700 26-32 48-854352A45 Black Max Sport Series
14 13 3 2000-3300 23-30 48-77340A45 Black Max Sport Series
14 11 3 2700-5400 18-25 48-77338A45 Black Max Sport Series
14 10 3 3500+ 1-18 48-854342A45 Black Max Sport Series
14 9 3 4000+ 1-15 48-854340A45 Black Max Sport Series MERCURY PROPELLER RIGGING CHART

2020 Mercury Precision Parts & Accessories Guide 797
