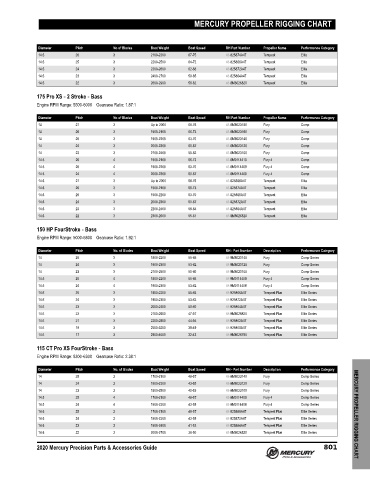

MERCURY PROPELLER RIGGING CHART

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
14.6 26 3 2100-2300 67-75 48-825874A47 Tempest Elite
14.6 25 3 2200-2500 64-72 48-825866A47 Tempest Elite
14.6 24 3 2300-2600 62-68 48-825872A47 Tempest Elite
14.6 23 3 2400-2700 59-65 48-825864A47 Tempest Elite
14.6 22 3 2600-2900 56-62 48-8M8026820 Tempest Elite
175 Pro XS ‑ 2 Stroke ‑ Bass
Engine RPM Range: 5500‑6000 Gearcase Ratio: 1.87:1

Diameter Pitch No of Blades Boat Weight Boat Speed RH Part Number Propeller Name Performance Category
14 27 3 Up to 2000 68-76 48-8M8023180 Fury Comp
14 26 3 1900-2100 66-73 48-8M8023160 Fury Comp
14 25 3 1900-2200 63-70 48-8M8023140 Fury Comp
14 24 3 2000-2300 60-67 48-8M8023120 Fury Comp
14 23 3 2100-2400 55-62 48-8M8023100 Fury Comp
14.5 26 4 1900-2100 66-73 48-8M0114410 Fury 4 Comp
14.5 25 4 1900-2200 63-70 48-8M0114409 Fury 4 Comp
14.5 24 4 2000-2300 60-67 48-8M0114408 Fury 4 Comp
14.6 27 3 Up to 2000 68-76 48-825868A47 Tempest Elite
14.6 26 3 1900-2100 66-73 48-825874A47 Tempest Elite
14.6 25 3 1900-2200 63-70 48-825866A47 Tempest Elite
14.6 24 3 2000-2300 60-67 48-825872A47 Tempest Elite
14.6 23 3 2200-2400 58-64 48-825864A47 Tempest Elite
14.6 22 3 2300-2600 55-61 48-8M8026820 Tempest Elite

150 HP FourStroke ‑ Bass
Engine RPM Range: 5000‑5800 Gearcase Ratio: 1.92:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14 25 3 1800-2200 55-65 48-8M8023140 Fury Comp Series
14 24 3 1900-2300 53-62 48-8M8023120 Fury Comp Series
14 23 3 2100-2500 50-60 48-8M8023100 Fury Comp Series
14.5 25 4 1800-2200 55-65 48-8M0114409 Fury 4 Comp Series
14.5 24 4 1900-2300 53-62 48-8M0114408 Fury 4 Comp Series
14.6 25 3 1800-2200 55-65 48-825866A47 Tempest Plus Elite Series
14.6 24 3 1900-2300 53-62 48-825872A47 Tempest Plus Elite Series
14.6 23 3 2000-2400 50-60 48-825864A47 Tempest Plus Elite Series
14.6 22 3 2100-2600 47-57 48-8M8026820 Tempest Plus Elite Series
14.6 21 3 2200-2800 44-54 48-825862A47 Tempest Plus Elite Series
14.6 19 3 2500-3200 39-49 48-825860A47 Tempest Plus Elite Series
14.6 17 3 2900-4000 32-43 48-8M8026790 Tempest Plus Elite Series
115 CT Pro XS FourStroke ‑ Bass
Engine RPM Range: 5300‑6300 Gearcase Ratio: 2.38:1

Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14 25 3 1700-2100 46-57 48-8M8023140 Fury Comp Series
14 24 3 1800-2300 43-55 48-8M8023120 Fury Comp Series
14 23 3 1900-2500 40-53 48-8M8023100 Fury Comp Series
14.5 25 4 1700-2100 46-57 48-8M0114409 Fury 4 Comp Series
14.5 24 4 1800-2300 43-55 48-8M0114408 Fury 4 Comp Series
14.6 25 3 1700-2100 46-57 48-825866A47 Tempest Plus Elite Series MERCURY PROPELLER RIGGING CHART
14.6 24 3 1800-2300 43-55 48-825872A47 Tempest Plus Elite Series
14.6 23 3 1900-2400 41-52 48-825864A47 Tempest Plus Elite Series
14.6 22 3 2000-2700 38-50 48-8M8026820 Tempest Plus Elite Series

2020 Mercury Precision Parts & Accessories Guide 801
