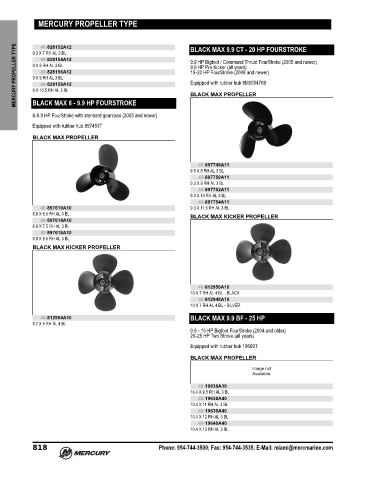

Page 827 - Latin America Accessories Guide (2020) - 8M0163252

MERCURY PROPELLER TYPE

MERCURY PROPELLER TYPE 9.3 X 7 RH AL 3 BL BLACK MAX 9.9 CT - 20 HP FOURSTROKE
48-828152A12
48-828154A12
9.9 HP Bigfoot / Command Thrust FourStroke (2005 and newer)
9 X 8 RH AL 3 BL
9.9 HP Pro Kicker (all years)
48-828156A12
15‑20 HP FourStroke (2008 and newer)
9 X 9 RH AL 3 BL
Equipped with rubber hub 8M0054769
48-828158A12
9 X 10.5 RH AL 3 BL
BLACK MAX PROPELLER
BLACK MAX 8 - 9.9 HP FOURSTROKE
8‑9.9 HP FourStroke with standard gearcase (2005 and newer)
Equipped with rubber hub 897453T

BLACK MAX PROPELLER

48-897748A11
9.5 X 8 RH AL 3 BL
48-897750A11
9.3 X 9 RH AL 3 BL
48-897752A11
9.3 X 10 RH AL 3 BL
48-897754A11
48-897610A10 9.3 X 11.5 RH AL 3 BL
8.9 X 6.5 RH AL 3 BL BLACK MAX KICKER PROPELLER
48-897614A10
8.9 X 7.5 RH AL 3 BL
48-897618A10
8.9 X 8.5 RH AL 3 BL
BLACK MAX KICKER PROPELLER

48-812950A10
10 X 7 RH AL 4 BL ‑ BLACK
48-812948A10
10 X 7 RH AL 4 BL ‑ SILVER

48-812954A10 BLACK MAX 9.9 BF - 25 HP
8.7 X 5 RH AL 4 BL
9.9 ‑ 15 HP Bigfoot FourStroke (2004 and older)
20‑25 HP Two Stroke (all years)
Equipped with rubber hub 19669T
BLACK MAX PROPELLER

48-19636A10
10.4 X 9.5 RH AL 3 BL
48-19638A40
10.4 X 11 RH AL 3 BL
48-19639A40
10.4 X 12 RH AL 3 BL
48-19640A40
10.4 X 13 RH AL 3 BL

818 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
