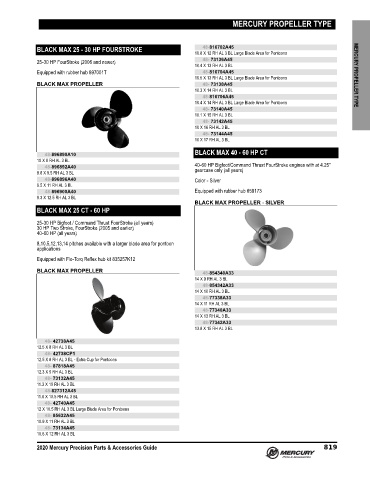

Page 828 - Latin America Accessories Guide (2020) - 8M0163252

MERCURY PROPELLER TYPE

BLACK MAX 25 - 30 HP FOURSTROKE 48-816702A45
10.8 X 12 RH AL 3 BL Large Blade Area for Pontoons
25‑30 HP FourStroke (2006 and newer) 48- 73136A45
10.4 X 13 RH AL 3 BL
Equipped with rubber hub 897001T 48-816704A45
10.5 X 13 RH AL 3 BL Large Blade Area for Pontoons MERCURY PROPELLER TYPE
BLACK MAX PROPELLER 48- 73138A45
10.3 X 14 RH AL 3 BL
48-816706A45
10.4 X 14 RH AL 3 BL Large Blade Area for Pontoons
48- 73140A45
10.1 X 15 RH AL 3 BL
48- 73142A45
10 X 16 RH AL 3 BL
48- 73144A45
10 X 17 RH AL 3 BL

48-896890A10 BLACK MAX 40 - 60 HP CT
10 X 8 RH AL 3 BL
48-896892A40 40‑60 HP Bigfoot/Command Thrust FourStroke engines with at 4.25"
9.8 X 9.5 RH AL 3 BL gearcase only (all years)
48-896896A40 Color ‑ Silver
9.5 X 11 RH AL 3 BL
48-896900A40 Equipped with rubber hub 859173
9.3 X 12.5 RH AL 3 BL
BLACK MAX PROPELLER - SILVER
BLACK MAX 25 CT - 60 HP

25‑30 HP Bigfoot / Command Thrust FourStroke (all years)
30 HP Two Stroke, FourStroke (2005 and earlier)
40‑60 HP (all years)
8,10.5,12,13,14 pitches available with a larger blade area for pontoon
applications
Equipped with Flo‑Torq Reflex hub kit 835257K12
BLACK MAX PROPELLER 48-854340A33
14 X 9 RH AL 3 BL
48-854342A33
14 X 10 RH AL 3 BL
48-77338A33
14 X 11 RH AL 3 BL
48-77340A33
14 X 13 RH AL 3 BL
48-77342A33
13.8 X 15 RH AL 3 BL

48- 42738A45
12.5 X 8 RH AL 3 BL
48- 42738CP1
12.5 X 8 RH AL 3 BL ‑ Extra Cup for Pontoons
48- 87818A45
12.3 X 9 RH AL 3 BL
48- 73132A45
11.3 X 10 RH AL 3 BL
48-827312A45
11.6 X 10.5 RH AL 3 BL
48- 42740A45
12 X 10.5 RH AL 3 BL Large Blade Area for Pontoons
48- 85632A45
10.9 X 11 RH AL 3 BL
48- 73134A45
10.6 X 12 RH AL 3 BL

2020 Mercury Precision Parts & Accessories Guide 819
