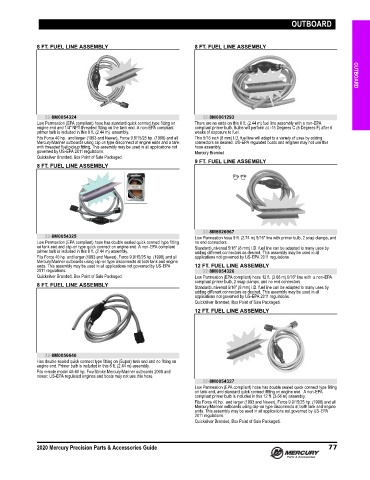

Page 86 - Latin America Accessories Guide (2020) - 8M0163252

OUTBOARD

8 FT. FUEL LINE ASSEMBLY 8 FT. FUEL LINE ASSEMBLY OUTBOARD

32-8M0054324 32-8M0061293
Low Permeation (EPA compliant) hose has standard quick connect type fitting on There are no ends on this 8 ft. (2.44 m) fuel line assembly with a non‑EPA
engine end and 1/4" NPT threaded fitting on the tank end. A non‑EPA compliant compliant primer bulb. Bulbs will perform at ‑15 Degrees C (5 Degrees F) after 6
primer bulb is included in this 8 ft. (2.44 m) assembly. weeks of exposure to fuel.
Fits Force 40 hp. and larger (1993 and Newer), Force 9.9/15/25 hp. (1998) and all This 5/16 inch (8 mm) I.D. fuel line will adapt to a variety of uses by adding
Mercury/Mariner outboards using clip on type disconnect at engine ends and a tank connectors as desired. US‑EPA regulated boats and engines may not use this
with threaded fuel pickup fitting. This assembly may be used in all applications not hose assembly.
governed by US‑EPA 2011 regulations. Mercury Branded
Quicksilver Branded, Box Point of Sale Packaged.
9 FT. FUEL LINE ASSEMBLY
8 FT. FUEL LINE ASSEMBLY

32-8M8026967
32-8M0054325 Low Permeation hose 9 ft. (2.74 m) 5/16" line with primer bulb, 2 snap clamps, and
Low Permeation (EPA compliant) hose has double sealed quick connect type fitting no end connectors.
on tank end and clip‑on type quick connect on engine end. A non‑EPA compliant Standard universal 5/16" (8 mm) I.D. fuel line can be adapted to many uses by
primer bulb is included in this 8 ft. (2.44 m) assembly. adding different connectors as desired. This assembly may be used in all
Fits Force 40 hp. and larger (1993 and Newer), Force 9.9/15/25 hp. (1998) and all applications not governed by US‑EPA 2011 regulations.
Mercury/Mariner outboards using clip‑on type disconnects at both tank and engine
ends. This assembly may be used in all applications not governed by US‑EPA 12 FT. FUEL LINE ASSEMBLY
2011 regulations. 32-8M0054326
Quicksilver Branded, Box Point of Sale Packaged. Low Permeation (EPA compliant) hose 12 ft. (3.66 m) 5/16" line with a non‑EPA
compliant primer bulb, 2 snap clamps, and no end connectors.
8 FT. FUEL LINE ASSEMBLY
Standard universal 5/16" (8 mm) I.D. fuel line can be adapted to many uses by
adding different connectors as desired. This assembly may be used in all
applications not governed by US‑EPA 2011 regulations.
Quicksilver Branded, Box Point of Sale Packaged.
12 FT. FUEL LINE ASSEMBLY

32-8M0056640
Has double sealed quick connect type fitting on (Super) tank end and no fitting on
engine end. Primer bulb is included in this 8 ft. (2.44 m) assembly.
Fits remote model 40‑60 hp. FourStroke Mercury/Mariner outboards 2008 and
newer. US‑EPA regulated engines and boats may not use this hose.
32-8M0054327
Low Permeation (EPA compliant) hose has double sealed quick connect type fitting
on tank end, and standard quick connect fitting on engine end. A non‑EPA
compliant primer bulb is included in this 12 ft. (3.66 m) assembly.
Fits Force 40 hp. and larger (1993 and Newer), Force 9.9/15/25 hp. (1998) and all
Mercury/Mariner outboards using clip‑on type disconnects at both tank and engine
ends. This assembly may be used in all applications not governed by US‑EPA
2011 regulations.
Quicksilver Branded, Box Point of Sale Packaged.

2020 Mercury Precision Parts & Accessories Guide 77
