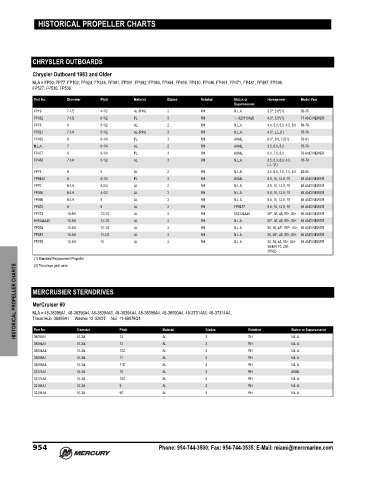

Page 963 - Latin America Accessories Guide (2020) - 8M0163252

HISTORICAL PROPELLER CHARTS

CHRYSLER OUTBOARDS

Chrysler Outboard 1983 and Older
NLA = FP50, FP77, FP102, FP324, FP346, FP381, FP391, FP392, FP393, FP394, FP410, FP410, FP446, FP461, FP471, FP481, FP497, FP499,
FP527, FP530, FP539
Part No. Diameter Pitch Material Blades Rotation Status or Horsepower Model Year
Supersession
FP19 7-1/2 4-1/2 AL (PIN) 2 RH N.L.A. 3.5*, 3.6*(1) 69-76
FP332 7-1/2 6-1/2 PL 3 RH 48-820110A20 4.0*, 3.5*(1) 77 AND NEWER
FP73 8 3-1/2 AL 2 RH N.L.A. 4.4, 5.0, 6.0, 4.5, 8.0 68-78
FP521 7-1/4 5-1/2 AL (PIN) 3 RH N.L.A. 4.0*, L.L.(1) 76-78
FP430 8 8-1/4 PL 3 RH AVAIL. 6.0*, 8.0, 7.5(1) 78-81
N.L.A. 7 6-1/4 AL 2 RH AVAIL. 3.5, 6.0, 8.0 76-79
FP477 8 9-1/4 PL 3 RH AVAIL. 6.0, 7.5, 8.0 78 AND NEWER
FP488 7-1/4 5-1/2 AL 3 RH N.L.A. 3.5, 6.0, 8.0, 4.0, 76-79
L.L.*(1)
FP75 8 5 AL 2 RH N.L.A. 3.5, 6.6, 7.0, 7.5, 8.0 68-80
FP6430 8 8-1/2 PL 3 RH AVAIL. 9.9, 10, 12.9, 15 68 AND NEWER
FP70 8-1/4 8-3/4 AL 2 RH N.L.A. 9.9, 10, 12.9, 15 68 AND NEWER
FP396 8-1/4 4-1/2 AL 3 RH N.L.A. 9.9, 10, 12.9, 15 68 AND NEWER
FP395 8-1/4 6 AL 3 RH N.L.A. 9.9, 10, 12.9, 15 68 AND NEWER
FP472 8 9 AL 3 RH FP6477 9.9, 10, 12.9, 15 68 AND NEWER
FP273 10-3/8 13-1/2 AL 3 RH 819334A40 30*, 35, 45, 55+, 60+ 66 AND NEWER
819334A40 10-3/8 13-1/2 AL 3 RH N.L.A. 30*, 35, 45, 55+, 60+ 66 AND NEWER
FP293 10-3/8 12-1/2 AL 3 RH N.L.A. 30, 35, 45*, 55*+, 60+ 66 AND NEWER
FP287 10-3/8 11-1/2 AL 3 RH N.L.A. 30, 35*, 45, 55+, 60+ 66 AND NEWER
FP278 10-3/8 10 AL 3 RH N.L.A. 30, 35, 45, 55+, 60+ 66 AND NEWER
Sailors 10, 250,
280(2)
(1) Standard Replacement Propeller
(2) Two-piece gear case
HISTORICAL PROPELLER CHARTS MERCRUSIER STERNDRIVES

MerCruiser 60
NLA = 48‑38396A1, 48‑38396A4, 48‑38394A1, 48‑38394A4, 48‑38086A4, 48‑38090A4, 48‑37314A1, 48‑37314A4,
Thrust Hub 38859A1 Washer 12‑32007 Nut 11‑69578Q1

Part No.
13
10-3/4
AL
N.L.A.
RH
3
38090A1
RH
3
N.L.A.
38094A1 Diameter Pitch Material Blades Rotation Status or Supersession
AL
12
10-3/4
38094A4 10-3/4 12C AL 3 RH N.L.A.
38098A1 10-3/4 11 AL 3 RH N.L.A.
38098A4 10-3/4 11C AL 3 RH N.L.A.
33774A1 10-3/4 10 AL 3 RH AVAIL.
33774A4 10-3/4 10C AL 3 RH N.L.A.
32194A1 10-3/4 9 AL 3 RH N.L.A.
32194A4 10-3/4 9C AL 3 RH N.L.A.
