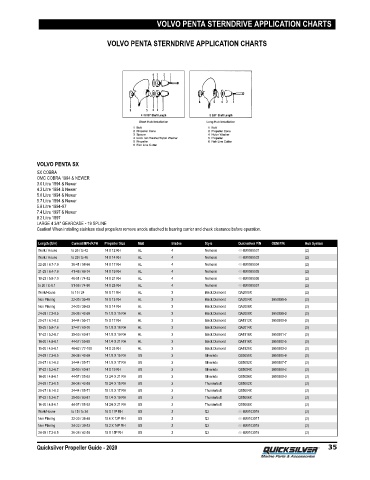

Page 41 - QUICKSILVER PROP GUIDE (2020)
P. 41
VOLVO PENTA STERNDRIVE APPLICATION CHARTS
VOLVO PENTA STERNDRIVE APPLICATION CHARTS
VOLVO PENTA SX
SX COBRA
OMC COBRA 1994 & NEWER
3.0 Litre 1994 & Newer
4.3 Litre 1994 & Newer
5.0 Litre 1994 & Newer
5.7 Litre 1994 & Newer
5.8 Litre 1994‑97
7.4 Litre 1997 & Newer
8.2 Litre 1997
LARGE 4 3/4'' GEARCASE ‑ 19 SPLINE
Caution! When installing stainless steel propellers remove anode attached to bearing carrier and check clearance before operation.
Length (ft/m) Current MPH/KPH Propeller Size Matl Blades Style Quicksilver P/N OEM P/N Hub System
Work / House to 26 / to 42 14 X 12 RH AL 4 Nemesis 48-8M0055531 (2)
Work / House to 29 / to 46 14 X 14 RH AL 4 Nemesis 48-8M0055533 (2)
22-26 / 6.7-7.9 36-41 / 58-66 14 X 17 RH AL 4 Nemesis 48-8M0055534 (2)
21-25 / 6.4-7.6 41-46 / 66-74 14 X 19 RH AL 4 Nemesis 48-8M0055535 (2)
19-23 / 5.8-7.0 46-51 / 74-82 14 X 21 RH AL 4 Nemesis 48-8M0055536 (2)
to 20 / to 6.1 51-56 / 74-90 14 X 23 RH AL 4 Nemesis 48-8M0055537 (2)
Work/House to 15 / 24 16 X 11 RH AL 3 Black Diamond QA2000X (2)
Non Planing 22-30 / 35-48 16 X 13 RH AL 3 Black Diamond QA2004X 3850298-5 (2)
Non Planing 24-33 / 39-53 16 X 14 RH AL 3 Black Diamond QA2006X (2)
24-28 / 7.3-8.5 26-36 / 42-58 15 1/2 X 15 RH AL 3 Black Diamond QA2008X 3850299-3 (2)
20-27 / 6.1-8.2 34-44 / 55-71 15 X 17 RH AL 3 Black Diamond QA1912X 3850300-9 (2)
19-25 / 5.8-7.6 37-47 / 60-76 15 1/2 X 18 RH AL 3 Black Diamond QA2014X (2)
17-22 / 5.2-6.7 39-50 / 63-81 14 1/2 X 19 RH AL 3 Black Diamond QA1916X 3850301-7 (2)
16-20 / 4.8-6.1 44-57 / 55-92 14 1/4 X 21 RH AL 3 Black Diamond QA1918X 3850302-5 (2)
15-20 / 4.5-6.1 48-62 / 77-100 14 X 23 RH AL 3 Black Diamond QA1920X 3850303-3 (2)
24-28 / 7.3-8.5 26-36 / 42-58 14 1/2 X 15 RH SS 3 Silverado QS5050X 3850305-8 (2)
20-27 / 6.1-8.2 34-44 / 55-71 14 1/2 X 17 RH SS 3 Silverado QS5052X 3850307-7 (2)
17-22 / 5.2-6.7 39-50 / 63-81 14 X 19 RH SS 3 Silverado QS5054X 3850308-2 (2)
16-20 / 4.8-6.1 44-57 / 55-92 13 3/4 X 21 RH SS 3 Silverado QS5056X 3850309-0 (2)
24-28 / 7.3-8.5 26-36 / 42-58 15 3/4 X 15 RH SS 3 Thunderbolt QS5002X (2)
20-27 / 6.1-8.2 34-44 / 55-71 15 1/2 X 17 RH SS 3 Thunderbolt QS5004X (2)
17-22 / 5.2-6.7 39-50 / 63-81 15 1/4 X 19 RH SS 3 Thunderbolt QS5006X (2)
16-20 / 4.8-6.1 44-57 / 55-92 14 3/4 X 21 RH SS 3 Thunderbolt QS5008X (2)
Work/House to 15 / to 24 16 X 11P RH SS 3 Q3 48-8M0103516 (2)
Non Planing 22-30 / 36-48 15.6 X 13P RH SS 3 Q3 48-8M0103517 (2)
Non Planing 24-33 / 39-53 15.3 X 14P RH SS 3 Q3 48-8M0103518 (2)
24-28 / 7.2-8.5 26-36 / 42-58 15 X 15P RH SS 3 Q3 48-8M0103519 (2)
Quicksilver Propeller Guide - 2020 35
