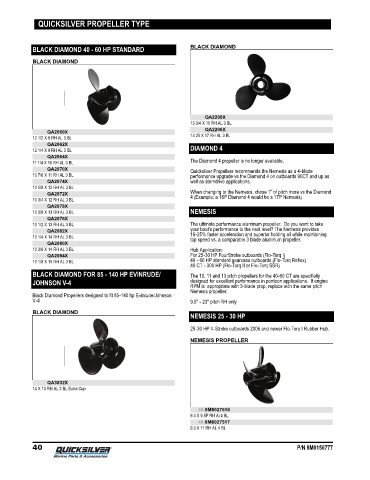

Page 46 - QUICKSILVER PROP GUIDE (2020)

QUICKSILVER PROPELLER TYPE

BLACK DIAMOND 40 - 60 HP STANDARD BLACK DIAMOND

BLACK DIAMOND

QA2208X
13 3/4 X 15 RH AL 3 BL
QA2206X
QA2060X
12 1/2 X 8 RH AL 3 BL 13.25 X 17 RH AL 3 BL
QA2062X
12 1/4 X 9 RH AL 3 BL DIAMOND 4
QA2064X
11 1/4 X 10 RH AL 3 BL The Diamond 4 propeller is no longer available.
QA2070X Quicksilver Propellers recommends the Nemesis as a 4‑blade
10 7/8 X 11 RH AL 3 BL performance upgrade vs the Diamond 4 on outboards 90CT and up as
QA2074X well as sterndrive applications.
10 5/8 X 12 RH AL 3 BL
QA2072X When changing to the Nemesis, chose 1" of pitch more vs the Diamond
10 3/4 X 12 RH AL 3 BL 4 (Example: a 16P Diamond 4 would be a 17P Nemesis)
QA2078X
10 3/8 X 13 RH AL 3 BL NEMESIS
QA2076X
10 1/2 X 13 RH AL 3 BL The ultimate performance aluminum propeller. Do you want to take
QA2082X your boat's performance to the next level? The Nemesis provides
16‑25% faster acceleration and superior holding all while maintaining
10 1/4 X 14 RH AL 3 BL top speed vs. a comparable 3 blade aluminum propeller.
QA2080X
10 3/8 X 14 RH AL 3 BL Hub Application:
QA2084X For 25‑30 HP FourStroke outboards (Flo‑Torq I)
10 1/8 X 15 RH AL 3 BL 40 ‑ 60 HP standard gearcase outboards (Flo‑Torq Reflex)
40 CT ‑ 300 HP (Flo‑Torq II or Flo‑Torq SSR)
BLACK DIAMOND FOR 85 - 140 HP EVINRUDE/ The 10, 11 and 13 pitch propellers for the 40‑60 CT are specifially
JOHNSON V-4 designed for excellent performance in pontoon applications. If engine
RPM is appropriate with 3‑blade prop, replace with the same pitch
Nemesis propeller.
Black Diamond Propellers designed to fit 85‑140 hp Evinrude/Johnson
V‑4 9.5" ‑ 23" pitch RH only
BLACK DIAMOND
NEMESIS 25 - 30 HP
25‑30 HP 4‑Stroke outboards 2006 and newer Flo‑Torq I Rubber Hub.

NEMESIS PROPELLER

QA3832X
14 X 13 RH AL 3 BL Extra Cup

48-8M8027516
9.3 X 9.5P RH Al 4 BL
48-8M8027517
9.3 X 11 RH AL 4 BL

40 P/N 8M0150777
