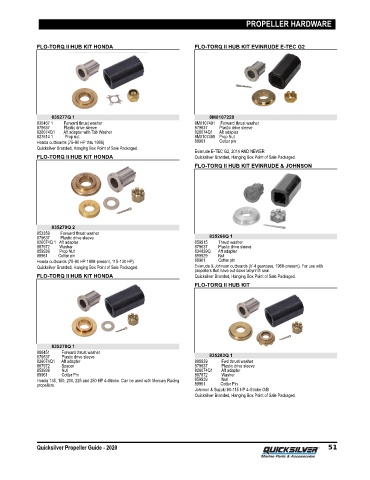

Page 57 - QUICKSILVER PROP GUIDE (2020)

PROPELLER HARDWARE

FLO-TORQ II HUB KIT HONDA FLO-TORQ II HUB KIT EVINRUDE E-TEC G2

835277Q 1 8M0107220
835467 1 Forward thrust washer 8M0107491 Forward thrust washer
879637 Plastic drive sleeve 879637 Plastic drive sleeve
826074Q1 Aft adapter with Tab Washer 826074Q1 Aft adapter
827614 1 Prop nut 8M0107489 Prop Nut
Honda outboards (75‑90 HP thru 1998) 89961 Cotter pin
Quicksilver Branded, Hanging Box Point of Sale Packaged.
Evinrude E‑TEC G2, 2014 AND NEWER
FLO-TORQ II HUB KIT HONDA Quicksilver Branded, Hanging Box Point of Sale Packaged.
FLO-TORQ II HUB KIT EVINRUDE & JOHNSON

835279Q 2
853359 Forward thrust washer
879637 Plastic drive sleeve 835266Q 1
826074Q 1 Aft adapter 859915 Thrust washer
887972 Washer 879637 Plastic drive sleeve
859939 Prop Nut 834839Q Aft adapter
88961 Cotter pin 859929 Nut
Honda outboards (75‑90 HP 1999‑present, 115‑130 HP) 89961 Cotter pin
Quicksilver Branded, Hanging Box Point of Sale Packaged. Evinrude & Johnson outboards (V‑4 gearcase, 1968‑present). For use with
propellers that have cut down labyrinth seal.
FLO-TORQ II HUB KIT HONDA Quicksilver Branded, Hanging Box Point of Sale Packaged.
FLO-TORQ II HUB KIT

835278Q 1
888451 Forward thrust washer
879637 Plastic drive sleeve 835283Q 1
826074Q1 Aft adapter 888939 Fwd thrust washer
887972 Spacer 879637 Plastic drive sleeve
859939 Nut 826074Q1 Aft adapter
89961 Cotter Pin 887972 Washer
Honda 135, 150, 200, 225 and 250 HP 4‑Stroke. Can be used with Mercury Racing 859939 Nut
propellers. 89961 Cotter Pin
Johnson & Suzuki 90‑115 HP 4‑Stroke O/B
Quicksilver Branded, Hanging Box Point of Sale Packaged.

Quicksilver Propeller Guide - 2020 51
