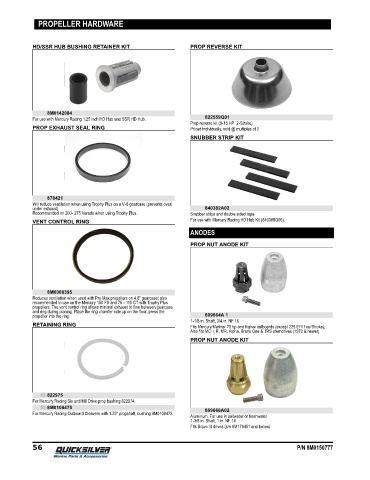

Page 62 - QUICKSILVER PROP GUIDE (2020)

PROPELLER HARDWARE

HD/SSR HUB BUSHING RETAINER KIT PROP REVERSE KIT

8M0142084
For use with Mercury Racing 1.25 inch HD Hub and SSR HD Hub. 822559Q01
Prop reverse kit (6‑15 HP 2‑Stroke)
PROP EXHAUST SEAL RING Priced individually, sold @ multiples of 2
SNUBBER STRIP KIT

878421
Will reduce ventilation when using Trophy Plus on a V‑6 gearcase (prevents over/
under exhaust). 840382A02
Recommended on 200‑ 275 Verado when using Trophy Plus. Snubber strips and double sided tape.
VENT CONTROL RING For use with Mercury Racing HD Hub Kit (840389Q06).
ANODES

PROP NUT ANODE KIT

8M0086395
Reduces ventilation when used with Pro Max propellers on 4.8" gearcase; also
recommended to use on the Mercury 150 FS and 75 ‑ 115 CT with Trophy Plus
propellers. The vent control ring allows minimal exhaust to flow between gearcase
and ring during planing. Place the ring chamfer side up on the floor, press the
propeller into the ring. 809664A 1
1‑1/8 in. Shaft, 3/4 in. NF 16
RETAINING RING Fits Mercury/Mariner 70 hp and higher outboards (except 225 EFI FourStroke);
Also fits MC‑I, R, MR, Alpha, Bravo One & TRS sterndrives (1970 & newer)
PROP NUT ANODE KIT

53-822975
For Mercury Racing Six and M8 Drive prop bushing 822974.
53-8M0108475
For Mercury Racing Outboard Cleavers with 1.25" propshaft, bushing 8M0108472. 809666A02
Aluminum, For use in saltwater or freshwater.
1‑3/8 in. Shaft, 1 in. NF 14
Fits Bravo III drives (s/n 0M179451 and below)

56 P/N 8M0150777
