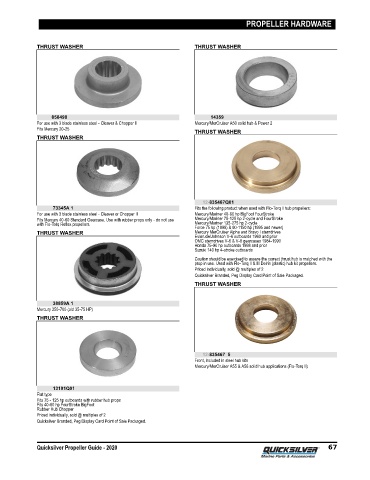

Page 73 - QUICKSILVER PROP GUIDE (2020)

PROPELLER HARDWARE

THRUST WASHER THRUST WASHER

858498 14359
For use with 3 blade stainless steel ‑ Cleaver & Chopper II Mercury/MerCruiser A50 solid hub & Power 2
Fits Mercury 20‑25
THRUST WASHER
THRUST WASHER

12-835467Q01
73345A 1 Fits the following product when used with Flo‑Torq II hub propellers:
For use with 3 blade stainless steel ‑ Cleaver or Chopper II Mercury/Mariner 40‑60 hp BigFoot FourStroke
Fits Mercury 40‑60 Standard Gearcase. Use with rubber props only ‑ do not use Mercury/Mariner 75‑125 hp 2‑cycle and FourStroke
with Flo‑Torq Reflex propellers. Mercury/Mariner 135‑275 hp 2‑cycle
Force 75 hp (1999) & 90‑1150 hp (1995 and newer)
THRUST WASHER Mercury MerCruiser Alpha and Bravo I sterndrives
Evinrude/Johnson V‑6 outboards 1990 and prior
OMC sterndrives V‑6 & V‑8 gearcases 1984‑1990
Honda 75‑90 hp outboards 1998 and prior
Suzuki 140 hp 4‑stroke outboards
Caution should be exercised to assure the correct thrust hub is matched with the
prop in use. Used with Flo‑Torq II & III Delrin (plastic) hub kit propellers.
Priced individually, sold @ multiples of 2
Quicksilver Branded, Peg Display Card Point of Sale Packaged.
THRUST WASHER

38859A 1
Mercury 350‑700 (old 35‑75 HP)
THRUST WASHER

12-835467 5
Front, included in steel hub kits
Mercury/MerCruiser A55 & A56 solid hub applications (Flo‑Torq II)

13191Q01
Flat type
Fits 75 ‑ 125 hp outboards with rubber hub props
Fits 40‑60 hp FourStroke BigFoot
Rubber Hub Chopper
Priced individually, sold @ multiples of 2
Quicksilver Branded, Peg Display Card Point of Sale Packaged.

Quicksilver Propeller Guide - 2020 67
