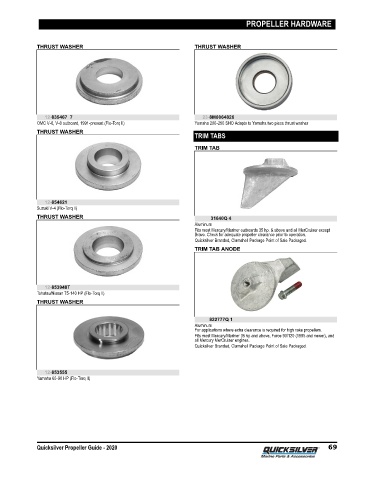

Page 75 - QUICKSILVER PROP GUIDE (2020)

PROPELLER HARDWARE

THRUST WASHER THRUST WASHER

12-835467 7 23-8M0064826
OMC V‑6, V‑8 outboard, 1991‑present (Flo‑Torq II) Yamaha 200‑250 SHO Adapts to Yamaha two piece thrust washer
THRUST WASHER
TRIM TABS
TRIM TAB

12-854621
Suzuki V‑4 (Flo‑Torq II)
THRUST WASHER 31640Q 4
Aluminum
Fits most Mercury/Mariner outboards 35 hp. & above and all MerCruiser except
Bravo. Check for adequate propeller clearance prior to operation.
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
TRIM TAB ANODE

12-853948T
Tohatsu/Nissan 75‑140 HP (Flo‑Torq II)
THRUST WASHER

822777Q 1
Aluminum
For applications where extra clearance is required for high rake propellers.
Fits most Mercury/Mariner 35 hp and above, Force 90/120 (1995 and newer), and
all Mercury MerCruiser engines.
Quicksilver Branded, Clamshell Package Point of Sale Packaged.

12-853555
Yamaha 60‑90 HP (Flo‑Torq II)

Quicksilver Propeller Guide - 2020 69
