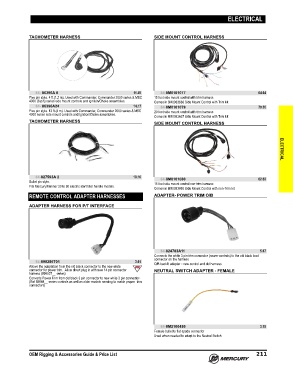

Page 224 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

TACHOMETER HARNESS SIDE MOUNT CONTROL HARNESS

84- 86396A 8 11.59 84-8M0101077 64.64
Five pin style. 4 ft.(1.2 m). Used with Commander, Commander 2000 series & MSC 15 foot side mount control with trim harness
4000 (8 pin) series side mount controls and Ignition/Choke assemblies. Comes in 8M0083666 Side Mount Control with Trim kit
84- 86396A24 14.17 84-8M0101079 70.55
Five pin style. 13 ft.(4 m). Used with Commander, Commander 2000 series & MSC 20 foot side mount control with trim harness
4000 series side mount controls and Ignition/Choke assemblies.
Comes in 8M0083667 Side Mount Control with Trim kit
TACHOMETER HARNESS SIDE MOUNT CONTROL HARNESS ELECTRICAL

84-827593A 2 19.10
84-8M0101080
Bullet pin style. 15 foot side mount control non‑trim harness 62.62
Fits Mercury/Mariner 30 to 90 electric start tiller handle models.
Comes in 8M0083860 Side Mount Control with non‑Trim kit
REMOTE CONTROL ADAPTER HARNESSES ADAPTER- POWER TRIM O/B
ADAPTER HARNESS FOR P/T INTERFACE

84-824783A11 5.67
Connects the white 3 pin trim connector (newer controls) to the old black boot
connector on the harness
84-898286T01 3.61 O/B backfit adapter ‑ new control and old harness
Allows the adaptation from the old black connector to the new white
connector for power trim. Allow direct plug in with new 14 pin connector NEUTRAL SWITCH ADAPTER - FEMALE
harness (896537__ series)
Converts Power Trim from old black 3 pin connector to new white 3 pin connector‑
(Ref 88688__ series controls as well as older models needing to match proper trim
connectors)

84-8M2100450 3.15
Female bullet to flat spade connector
Used when needed to adapt to the Neutral Switch

OEM Rigging & Accessories Guide & Price List 211
