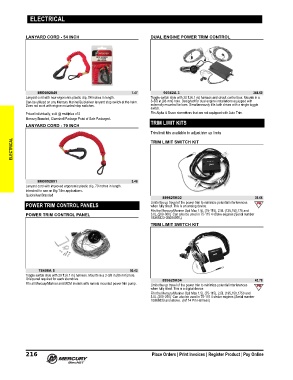

Page 229 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ELECTRICAL

LANYARD CORD - 54 INCH DUAL ENGINE POWER TRIM CONTROL

8M0092849 7.47 90362A 3 344.60
Lanyard cord with new ergonomic plastic clip, 54 inches in length. Toggle switch style with 20 ft.(6.1 m) harness and circuit control box. Mounts in a
Can be utilized on any Mercury Marine/Quicksilver lanyard stop switch at the helm. 3‑3/8 in.(86 mm) hole. Designed for dual engine installations equipped with
Does not work with engine mounted stop switches. externally mounted tie bars. Simultaneously tilts both drives with a single toggle
switch.
Priced individually, sold @ multiples of 2 Fits Alpha & Bravo sterndrives that are not equipped with Auto Trim.
Mercury Branded, Clamshell Package Point of Sale Packaged.
TRIM LIMIT KITS
LANYARD CORD - 70 INCH
Trim limit kits available to adjust trim up limits
ELECTRICAL TRIM LIMIT SWITCH KIT

8M0092851 3.48
Lanyard cord with improved ergonomic plastic clip, 70 inches in length.
Intended for use on Big Tiller applications.
Quicksilver Branded
899625K02 39.66
POWER TRIM CONTROL PANELS Limits the up travel of the power trim to minimize potential interferences
when fully tilted. This is an analog device.
Fits the Mercury/Mariner Opti Max 1.5L (75‑115), 2.5L (135,150,175 and
POWER TRIM CONTROL PANEL 3.0L (200‑300) Can also be used in 75‑115 4 stroke engines (Serial number
1B366823‑2B094955.)
TRIM LIMIT SWITCH KIT

78408A 5 50.43
Toggle switch style with 20 ft.(6.1 m) harness. Mounts in a 3‑3/8 in.(86 mm) hole.
One panel required for each sterndrive. 899625K04 43.78
Fits all Mercury/Mariner and MCM models with remote mounted power trim pump.
Limits the up travel of the power trim to minimize potential interferences
when fully tilted. This is a digital device.
Fits the Mercury/Mariner Opti Max 1.5L (75‑115), 2.5L (135,150,1750 and
3.0L (200‑250) Can also be used in 75‑115 4 stroke engines (Serial number
1B366823 and above. (ref 14 Pin Harness)
