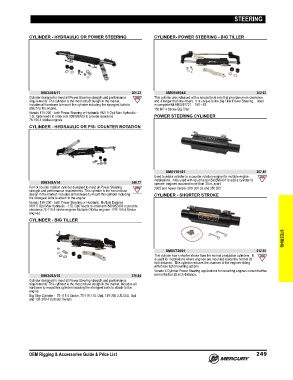

Page 262 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

STEERING

CYLINDER - HYDRAULIC OR POWER STEERING CYLINDER- POWER STEERING - BIG TILLER

898349A11 301.33 8M0058944 352.02
Cylinder designed to meet all Power Steering strength and performance This cylinder was released with a special bent arm that provides more clearance
requirements. This cylinder is the most robust design in the market. and is longer than the others. It is unique to the Big Tiller Power Steering . Used
Includes all hardware to mount this cylinder including the strongest bolts to in complete Kit 8M0061721. 150 ‑ 4S
attach to the engine. 150 HP 4 Stroke Big Tiller
Verado 175‑200 ‑ both Power Steering or Hydraulic V6/1.5 Opti Max Hydraulic ‑
1.5L Opti needs to order arm 898082A03 to provide clearance POWER STEERING CYLINDER
75‑150 4 stroke engines.
CYLINDER - HYDRAULIC OR P/S- COUNTER ROTATION

8M0118141 257.45
Used to add a cylinder to a counter rotation engine for multiple engine
installations. Also used with liquid tie bar 893396A01 to add a cylinder to
898349A14 346.77 operate engines mounted more than 34 in. apart
Port ot counter rotation cylinder designed to meet all Power Steering 2005 and newer Verado 200‑300 L6 and 350 SCI
strength and performance requirements. This cylinder is the most robust
design in the market. Includes all hardware to mount this cylinder including CYLINDER - SHORTER STROKE
the strongest bolts to attach to the engine
Verado 135‑200 ‑ both Power Steering or Hydraulic. Multiple Engines
V6/1.5 Opti Max Hydraulic ‑ 1.5L Opti needs to order arm 898082A03 to provide
clearance 75‑115 4 stroke engines Multiple OtiMax engines ‑ P/S 150 4 Stroke
engines.
CYLINDER - BIG TILLER

8M0072601 612.38 STEERING
This cylinder has s shorter stroke than the normal production cylinders. It
is used for installations where engines are mounted inside the normal 26
inch distance. This cylinder reduces the chances of the engines hitting
with these tight mounting options
Verado 6 Cylinder Power Steering applications for mounting engines closer that the
898349A15 378.84 normal tie bar 26 inch distance.
Cylinder designed to meet all Power Steering strength and performance
requirements. This cylinder is the most robust design in the market. Includes all
hardware to mount this cylinder including the strongest bolts to attach to the
engine.
Big Tiller Cylinder ‑ 75‑115 4 Stroke, 75‑115 1.5L Opti, 135‑250 2.5L/3.0L Opti
and 135‑200 4 Cylinder Verado

OEM Rigging & Accessories Guide & Price List 249
