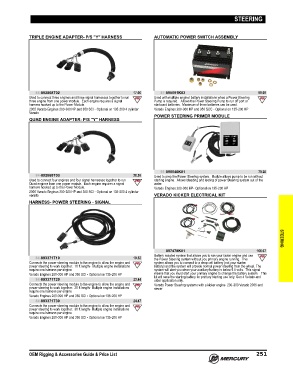

Page 264 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

STEERING

TRIPLE ENGINE ADAPTER- P/S "Y" HARNESS AUTOMATIC POWER SWITCH ASSEMBLY

84-892868T02 17.00 87-895091K03 98.08
Used to connect three engines and three signal harnesses together to run Used with multiple engine/ battery installations when a Power Steering
three engine from one power module. Each engine requires a signal Pump is required. Allows the Power Steering Pump to run off port or
harness hooked up to the Power Module. starboard batteries. Maximum of three batteries can be used.
2005 Verado Engines 200‑300 HP and 350 SCI ‑ Optional on 135‑200 4 cylinder Verado Engines 200‑300 HP and 350 SCC ‑ Optional on 135‑200 HP
Verado
POWER STEERING PRIMER MODULE
QUAD ENGINE ADAPTER- P/S "Y" HARNESS

91-895040K01 79.20
84-892868T03 20.35 Used to prep the Power Steering system. Module allows pump to be run without
Used to connect four engines and four signal harnesses together to run starting engine. Allows bleeding and testing of power Steering system out of the
Quad engines from one power module. Each engine requires a signal water.
harness hooked up to the Power Module. Verado Engines 200‑300 HP‑ Optional on 135‑200 HP
2006 Verado Engines 200‑300 HP and 350 SCI ‑ Optional on 135‑200 4 cylinder
verado VERADO KICKER ELECTRICAL KIT
HARNESS- POWER STEERING - SIGNAL

897478K01 166.07 STEERING
Battery isolated system that allows you to run your kicker engine and use
84-893371T10 19.32 the Power Steering system without you primary engine running. This
Connects the power steering module to the engine to allow the engine and system allows you to connect to a deep cell battery (not your starter
power steering to work together. 10 ft length‑ Multiple engine installations battery) and the system will provide normal power steering from the wheel. The
require one harness per engine system will alert you when your auxiliary battery is below 9.5 volts. This signal
Verado Engines 200‑300 HP and 350 SCI ‑ Optional on 135‑200 HP means that you must start your primary engine to change the battery system. This
84-893371T20 23.44 kit will save the starting battery for primary starting use only. Gen 4 Verado and
older application only.
Connects the power steering module to the engine to allow the engine and Verado Power Steering systems with a kicker engine 200‑300 Verado 2005 and
power steering to work together. 20 ft length‑ Multiple engine installations newer
require one harness per engine
Verado Engines 200‑300 HP and 350 SCI ‑ Optional on 135‑200 HP
84-893371T30 24.47
Connects the power steering module to the engine to allow the engine and
power steering to work together. 30 ft length‑ Multiple engine installations
require one harness per engine
Verado Engines 200‑300 HP and 350 SCI ‑ Optional on 135‑200 HP

OEM Rigging & Accessories Guide & Price List 251
