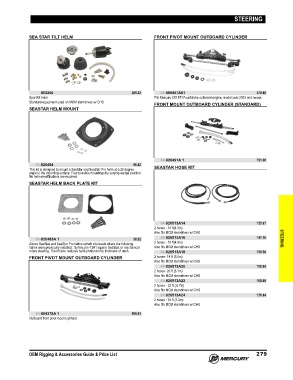

Page 292 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

STEERING

SEA STAR TILT HELM FRONT PIVOT MOUNT OUTBOARD CYLINDER

862250 389.23 64-889457A01 570.86
Sport tilt helm Fits Mercury 225 EFI FourStroke outboard engine, model year 2002 and newer.
Standard equipment used on MCM sterndrives w/ CHS
FRONT MOUNT OUTBOARD CYLINDER (STANDARD)
SEASTAR HELM MOUNT

64-826491A 1 721.36
64-826484 66.42
This kit is designed to mount a SeaStar and SeaStar Pro helm at a 20 degree SEASTAR HOSE KIT
angle to the mounting surface. Four possible mountings by varying wedge position.
No helm modifications are required.
SEASTAR HELM BACK PLATE KIT

64-826513A14 135.97
2 hoses ‑ 14 ft(4.3m)
Also fits MCM sterndrives w/ CHS
64-826483A 1 30.62 64-826513A16 141.16 STEERING
Allows SeaStar and SeaStar Pro helms retrofit into boats where the following 2 hoses ‑ 16 ft(4.9m)
helms were previously installed: SyTen, pre‑1991 square SeaStar, or mechanical Also fits MCM sterndrives w/ CHS
rotary steering. The kit also reduces helm protrusion by thickness of dash. 64-826513A18 150.50
FRONT PIVOT MOUNT OUTBOARD CYLINDER 2 hoses‑ 18 ft (5.5m)
Also fits MCM sterndrives w/ CHS
64-826513A20 155.69
2 hoses‑ 20 ft (6.1m)
Also fits MCM sterndrives w/ CHS
64-826513A22 160.88
2 hoses ‑ 22 ft ( 6.7m)
Also fits MCM sterndrives w/ CHS
64-826513A24 176.44
2 hoses ‑ 24 ft (7.3m)
Also fits MCM sterndrives w/ CHS
64-804378A 1 596.81
Outboard front pivot mount cylinder.

OEM Rigging & Accessories Guide & Price List 279
