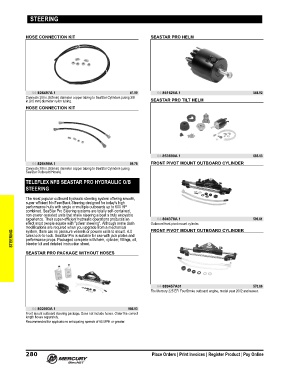

Page 293 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

STEERING

HOSE CONNECTION KIT SEASTAR PRO HELM

64-826497A 1 41.00 64-851625A 1 544.92
Connects 3/8 in.(9.5mm) diameter copper tubing to SeaStar Cylinders (using 3/8
in.[9.5 mm] diameter nylon tubing. SEASTAR PRO TILT HELM
HOSE CONNECTION KIT

64-853690A 1 685.03
64-826498A 1 89.78 FRONT PIVOT MOUNT OUTBOARD CYLINDER
Connects 3/8 in.(9.5mm) diameter copper tubing to SeaStar Cylinders (using
SeaStar Outboard Hoses)

TELEFLEX NFB SEASTAR PRO HYDRAULIC O/B
STEERING

The most popular outboard hydraulic steering system offering smooth,
super‑efficient No FeedBack Steering designed for today's high
performance hulls with single or multiple outboards up to 600 HP
combined. SeaStar Pro Steering systems are totally self‑contained,
non‑power‑assisted units that make steering a boat a truly enjoyable
experience. Their super‑efficient hydraulic operations produces an 64-804378A 1 596.81
effect most people equate with "power steering". Although some dash Outboard front pivot mount cylinder.
modifications are required when you upgrade from a mechanical FRONT PIVOT MOUNT OUTBOARD CYLINDER
system, there are no pressure vessels or powers units to mount. 4.0
STEERING turns lock‑to‑lock. SeaStar Pro is suitable for use with jack plates and
performance props. Packaged complete with helm, cylinder, fittings, oil,
bleeder kit and detailed instruction sheet.
SEASTAR PRO PACKAGE WITHOUT HOSES

64-889457A01 570.86
Fits Mercury 225 EFI FourStroke outboard engine, model year 2002 and newer.

64-802903A 1 986.03
Front mount outboard steering package. Does not include hoses. Order the correct
length hoses separately.
Recommended for applications anticipating speeds of 65 MPH or greater.

280 Place Orders | Print Invoices | Register Product | Pay Online
