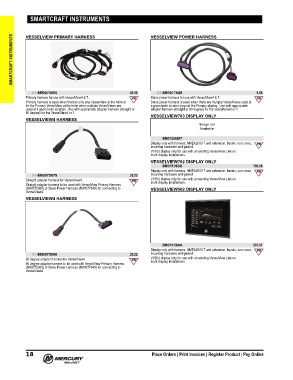

Page 31 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

SMARTCRAFT INSTRUMENTS VESSELVIEW POWER HARNESS

SMARTCRAFT INSTRUMENTS
VESSELVIEW PRIMARY HARNESS

84-8M0075065 50.66 84-8M0077649 9.66
Primary harness for use with VesselView4 & 7. Slave power harness for use with VesselView4 & 7.
Primary harness is used when there is only one VesselView at the helm or Slave power harness is used when there are multiple VesselViews used at
for the Primary VesselView at the helm when multiple VesselViews are a given helm location beyond the Primary display. Use with appropriate
used at a given helm location. Use with appropriate adapter harness (straight or adapter harness (straight or 90 degree) for the VesselView4 or 7.
90 degree) for the VesselView4 or 7.
VESSELVIEW703 DISPLAY ONLY
VESSELVIEW4 HARNESS

8M0124497
Display only with harness, NMEA2000 T and extension, bezels, sun cover,
mounting hardware and gasket.
VV703 display only for use with an exisitng VesselView Link on
multi‑display installations.
VESSELVIEW702 DISPLAY ONLY
8M0110638 790.06
Display only with harness, NMEA2000 T and extension, bezels, sun cover,
84-8M0075079 25.22 mounting hardware and gasket.
Straight adapter harness for VesselView4. VV702 display only for use with an exisitng VesselView Link on
Straight adapter harness to be used with VesselView Primary Harness multi‑display installations.
(8M0075065) or Slave Power Harness (8M0077649) for connecting to VESSELVIEW502 DISPLAY ONLY
VesselView4.
VESSELVIEW4 HARNESS

8M0110644 237.87
Display only with harness, NMEA2000 T and extension, bezels, sun cover,
84-8M0075066 25.22 mounting hardware and gasket.
90 degree adapter harness for VesselView4. VV502 display only for use with an exisitng VesselView Link on
multi‑display installations.
90 degree adapter harness to be used with VesselView Primary Harness
(8M0075065) or Slave Power Harness (8M0077649) for connecting to
VesselView4.
