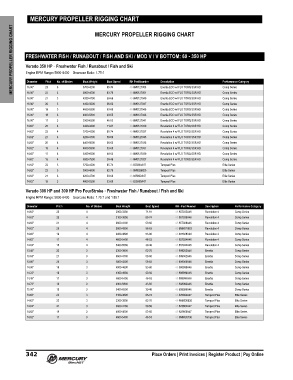

MERCURY PROPELLER RIGGING CHART
MERCURY PROPELLER RIGGING CHART FRESHWATER FISH / RUNABOUT / FISH AND SKI / MOD V / V BOTTOM: 60 - 350 HP
MERCURY PROPELLER RIGGING CHART

Verado 350 HP ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.75:1

Diameter
65-74
Comp Series
3700-4200
3
23
Enertia ECO w/ FLO TORQ SSR HD
48-8M0127053
16.00”
3900-4500
63-70
48-8M0127051
Enertia ECO w/ FLO TORQ SSR HD
Comp Series
22
16.00”
3
3
4200-4700
21
Enertia ECO w/ FLO TORQ SSR HD
Comp Series
16.00” Pitch No. of Blades Boat Weight Boat Speed RH Part Number Description Performance Category
59-66
48-8M0127049
16.00” 20 3 4400-5000 56-63 48-8M0127047 Enertia ECO w/ FLO TORQ SSR HD Comp Series
16.00” 19 3 4600-5300 53-60 48-8M0127045 Enertia ECO w/ FLO TORQ SSR HD Comp Series
16.00” 18 3 4900-5800 49-55 48-8M0127043 Enertia ECO w/ FLO TORQ SSR HD Comp Series
16.00” 17 3 5300-6300 46-53 48-8M0127041 Enertia ECO w/ FLO TORQ SSR HD Comp Series
14.62” 25 4 3300-3800 71-81 48-8M0127039 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.62” 23 4 3700-4200 65-74 48-8M0127037 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.62” 21 4 4200-4700 59-66 48-8M0127035 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.62" 20 4 4400-5000 56-63 48-8M0127033 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.62” 19 4 4600-5300 53-60 48-8M0127031 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.62” 17 4 5300-6300 46-53 48-8M0127029 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.62” 15 4 6300-7500 39-46 48-8M0127027 Revolution 4 w/ FLO TORQ SSR HD Comp Series
14.62” 23 3 3700-4200 65-74 48-825864A47 Tempest Plus Elite Series
14.62” 22 3 3900-4500 62-70 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 4200-4700 59-66 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 4600-5300 53-60 48-825860A47 Tempest Plus Elite Series
Verado 300 HP and 300 HP Pro FourStroke ‑ Freshwater Fish / Runabout / Fish and Ski
Engine RPM Range: 5800‑6400 Gearcase Ratio: 1.75:1 and 1.85:1
Diameter Pitch No. of Blades Boat Weight Boat Speed RH - Part Number Description Performance Category
14.62” 25 4 2800-3300 71-81 48-857032A46 Revolution 4 Comp Series
14.62” 23 4 3100-3600 65-74 48-857030A46 Revolution 4 Comp Series
14.62” 21 4 3600-4100 59-66 48-857028A46 Revolution 4 Comp Series
14.62" 20 4 3800-4300 56-63 48-8M0070052 Revolution 4 Comp Series
14.62” 19 4 4000-4600 53-60 48-857026A46 Revolution 4 Comp Series
14.62” 17 4 4600-5400 46-53 48-857024A46 Revolution 4 Comp Series
14.62” 15 4 5400-6500 39-46 48-857022A46 Revolution 4 Comp Series
13.45” 22 3 3300-3800 62-70 48-899202A46 Enertia Comp Series
13.63” 21 3 3600-4100 59-66 48-899002A46 Enertia Comp Series
13.80” 20 3 3800-4300 56-63 48-899000A46 Enertia Comp Series
14.00” 19 3 4000-4600 53-60 48-898998A46 Enertia Comp Series
14.22” 18 3 4300-4900 50-56 48-898996A46 Enertia Comp Series
14.45” 17 3 4600-5400 46-53 48-898994A46 Enertia Comp Series
14.72” 16 3 4900-5800 43-50 48-898992A46 Enertia Comp Series
15.00” 15 3 5400-6500 39-46 48-898990A46 Enertia Comp Series
14.62” 23 3 3100-3600 65-74 48-825864A47 Tempest Plus Elite Series
14.62” 22 3 3300-3800 62-70 48-8M8026820 Tempest Plus Elite Series
14.62” 21 3 3600-4100 59-66 48-825862A47 Tempest Plus Elite Series
14.62” 19 3 4000-4600 53-60 48-825860A47 Tempest Plus Elite Series
14.62” 17 3 4600-5400 46-53 48-8M8026790 Tempest Plus Elite Series
