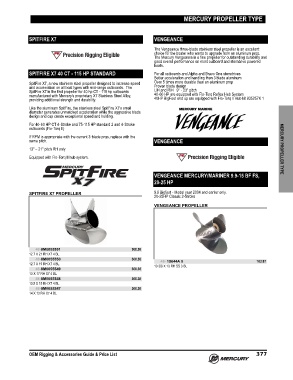

Page 390 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY PROPELLER TYPE

SPITFIRE X7 VENGEANCE

The Vengeance three‑blade stainless steel propeller is an excellent
choice for the boater who wants to upgrade from an aluminum prop.
The Mercury Vengeance is a fine propeller for outstanding durability and
good overall performance on most outboard and sterndrive powered
boats.
SPITFIRE X7 40 CT - 115 HP STANDARD For all outboards and Alpha and Bravo One sterndrives
Better acceleration and handling than 3 blade aluminum
SpitFire X7, a new stainless steel propeller designed to increase speed Over 5 times more durable than an aluminum prop
and acceleration on all boat types with mid‑range outboards. The Proven blade design
SpitFire X7 is the first propeller for 40 hp CT ‑ 115 hp outboards L/H and R/H 9" ‑ 23" pitch
manufactured with Mercury's proprietary X7 Stainless Steel Alloy, 40‑60 HP are equipped with Flo‑Torq Reflex Hub System
providing additional strength and durability. 40HP BigFoot and up are equipped with Flo‑Torq II Hub kit 835257K 1

Like the aluminum SpitFire, the stainless steel SpitFire X7’s small
diameter generates unmatched acceleration while the aggressive blade
design and cup create exceptional speed and holding.
For 40‑60 HP CT 4‑Stroke and 75‑115 HP standard 2 and 4‑Stroke
outboards (Flo‑Torq II)
If RPM is appropriate with the current 3‑blade prop, replace with the
same pitch. VENGEANCE
13" – 21" pitch RH only MERCURY PROPELLER TYPE
Equipped with Flo‑Torq II hub system.

VENGEANCE MERCURY/MARINER 9.9-15 BF FS,
20-25 HP

SPITFIRE X7 PROPELLER 9.9 Bigfoot ‑ Model year 2004 and earlier only.
20‑25HP Classic 2‑Stroke
VENGEANCE PROPELLER

48-8M0055551 300.38
12.7 X 21 RH X7 4 BL
48-8M0055550 300.38 48- 19644A 5 163.87
12.7 X 19 RH X7 4 BL 10 3/8 X 13 RH SS 3 BL
48-8M0055549 300.38
13 X 17 RH X7 4 BL
48-8M0055548 300.38
13.5 X 15 RH X7 4 BL
48-8M0055547 300.38
14 X 13 RH X7 4 BL

OEM Rigging & Accessories Guide & Price List 377
