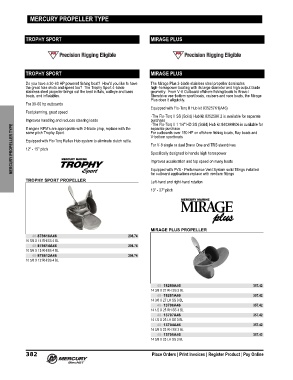

Page 395 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)
P. 395

MERCURY PROPELLER TYPE



            TROPHY SPORT                                        MIRAGE PLUS







            TROPHY SPORT                                        MIRAGE PLUS

            Do you have a 30‑60 HP powered fishing boat?  How'd you like to have  The Mirage Plus 3‑blade stainless steel propeller dominates
            the great hole shots and speed too?  The Trophy Sport 4‑blade  high‑horsepower boating with its large diameter and high output blade
            stainless steel propeller brings out the best in flats, walleye and bass  geometry.  From V‑6 Outboard offshore fishing boats to Bravo I
            boats, and inflatables.                             Sterndrive vee‑bottom sport boats, cruisers and race boats, the Mirage
                                                                Plus does it allquickly.
            For 30‑60 hp outboards
                                                                Equipped with Flo‑Torq II Hub kit 835257K1(A46)
            Fast planning, great speed
                                                                ‑The Flo‑Torq II SS (Solid) Hub kit 835258K 2 is available for separate
            Improves handling and reduces steering loads        purchase
                                                                ‑The Flo‑Torq II 1 1/4" HD SS (Solid) Hub kit 840389K06 is available for
      MERCURY PROPELLER TYPE  Equipped with Flo‑Torq Reflex Hub system to eliminate clutch rattle.  V‑bottom sportboats
            If engine RPM's are appropriate with 3‑blade prop, replace with the
                                                                separate purchase
            same pitch Trophy Sport.
                                                                For outboards over 150 HP on offshore fishing boats, Bay boats and
                                                                For V‑8 single or dual Bravo One and TRS sterndrives
            12" ‑ 15" pitch
                                                                Specifically designed to handle high horsepower
                                                                Improves acceleration and top speed on many boats


                                                                for outboard applications replace with medium fittings
            TROPHY SPORT PROPELLER                              Equipped with PVS ‑ Performance Vent System solid fittings installed
                                                                Left‑hand and right‑hand rotation
                                                                13" ‑ 27" pitch








                                                                MIRAGE PLUS PROPELLER
              48-878616A46                             208.74
            10 5/8 X 14 RH SS 4 BL
              48-878614A46                             208.74
            10 5/8 X 13 RH SS 4 BL
              48-878612A46                             208.74
            10 5/8 X 12 RH SS 4 BL





                                                                   48- 18280A46                            357.42
                                                                14 3/8 X 27 RH SS 3 BL
                                                                   48- 18281A46                            357.42
                                                                14 3/8 X 27 LH SS 3 BL
                                                                   48- 13706A46                            357.42
                                                                14 1/2 X 25 RH SS 3 BL
                                                                   48- 13707A46                            357.42
                                                                14 1/2 X 25 LH SS 3 BL
                                                                   48- 13704A46                            357.42
                                                                14 5/8 X 23 RH SS 3 BL
                                                                   48- 13705A46                            357.42
                                                                14 5/8 X 23 LH SS 3 BL
