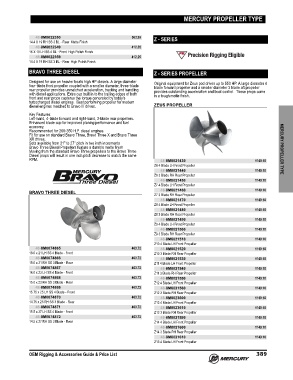

Page 402 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY PROPELLER TYPE

48-8M8022350 363.99 Z - SERIES
14.4 X 19 RH SS 3 BL ‑ Rear Matte Finish
48-8M8022349 412.25
16 X 19 LH SS 4 BL ‑ Front High Polish Finish
48-8M8022359 412.25
14.4 X 19 RH SS 3 BL ‑ Rear High Polish Finish
BRAVO THREE DIESEL Z - SERIES PROPELLER

Designed for use on heavier boats high HP diesels. A large diameter Original equipment for Zeus pod drives up to 550 HP. A large diameter 4
four‑blade front propeller coupled with a smaller diameter, three‑blade blade forward propeller and a smaller diameter 3 blade aft propeller
rear propeller provides unmatched acceleration, tracking and handling provides outstanding acceleration and boat control. These props come
with diesel applications. Extra cup built in to the trailing edges of both in a tough matte finish.
front and rear props captures the torque generated by today’s
turbocharged diesel engines. Best performing propeller for modern
diesel engines matched to Bravo III drives. ZEUS PROPELLER
Key Features:
Left‑hand, 4‑blade forward and right‑hand, 3‑blade rear propellers.
Enhanced blade cup for improved planing performance and fuel
economy.
Recommended for 260‑350 H.P. diesel engines.
Fit for use on standard Bravo Three, Bravo Three X and Bravo Three
XR drives.
Sets available from 21" to 27" pitch in two inch increments
Bravo Three Diesel Propellers feature a durable matte finish
Moving from the standard Bravo Three propellers to the Bravo Three MERCURY PROPELLER TYPE
Diesel props will result in one inch pitch decrease to match the same
RPM. 48-8M8021430 1149.10
Z6 4 Blade LH Front Propeller
48-8M8021440 1149.10
Z6 3 Blade RH Rear Propeller
48-8M8021450 1149.10
Z7 4 Blade LH Front Propeller
48-8M8021460 1149.10
BRAVO THREE DIESEL
Z7 3 Blade RH Rear Propeller
48-8M8021470 1149.10
Z8 4 Blade LH Front Propeller
48-8M8021480 1149.10
Z8 3 Blade RH Rear Propeller
48-8M8021490 1149.10
Z9 4 Blade LH Front Propeller
48-8M8021500 1149.10
Z9 3 Blade RH Rear Propeller
48-8M8021510 1149.10
Z10 4 Blade LH Front Propeller
48-8M0074865 463.72 48-8M8021520 1149.10
16.0 x 21 LH SS 4 Blade ‑ Front Z10 3 Blade RH Rear Propeller
48-8M0074866 463.72 48-8M8021530 1149.10
15.0 x 21 RH SS 3 Blade ‑ Rear Z11 4 Blade LH Front Propeller
48-8M0074867 463.72 48-8M8021540 1149.10
16.0 x 23 LH SS 4 Blade ‑ Front Z11 3 Blade RH Rear Propeller
48-8M0074868 463.72 48-8M8021550 1149.10
15.0 x 23 RH SS 3 Blade ‑ Rear Z12 4 Blade LH Front Propeller
48-8M0074869 463.72 48-8M8021560 1149.10
15.75 x 25 LH SS 4 Blade ‑ Front Z12 3 Blade RH Rear Propeller
48-8M0074870 463.72 48-8M8023600 1149.10
14.75 x 25 RH SS 3 Blade ‑ Rear Z13 4 Blade LH Front Propeller
48-8M0074871 463.72 48-8M8023610 1149.10
15.5 x 27 LH SS 4 Blade ‑ Front Z13 3 Blade RH Rear Propeller
48-8M0074872 463.72 48-8M8021590 1149.10
14.5 x 27 RH SS 3 Blade ‑ Rear Z14 4 Blade LH Front Propeller
48-8M8021600 1149.10
Z14 3 Blade RH Rear Propeller
48-8M8021610 1149.10
Z15 4 Blade LH Front Propeller

OEM Rigging & Accessories Guide & Price List 389
