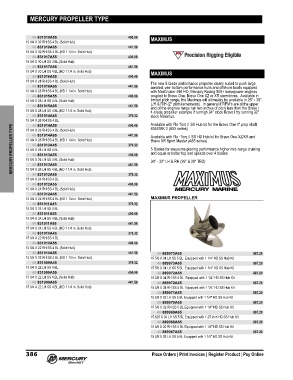

Page 399 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY PROPELLER TYPE

48-831918A55 400.08 MAXIMUS
15 1/4 X 30 RH SS 4 BL (Solid Hub)
48-831918A65 441.58
15 1/4 X 30 RH SS 4 BL (HD 1 1/4 in. Solid Hub)
48-831917A55 400.08
15 1/4 X 30 LH SS 4 BL (Solid Hub)
48-831917A65 441.58
15 1/4 X 30 LH SS 4 BL (HD 1 1/4 in. Solid Hub) MAXIMUS
48-831916A55 400.08
15 1/4 X 28 RH SS 4 BL (Solid Hub) The new 5‑blade performance propeller ideally suited to push large
48-831916A65 441.58 aerated, vee‑bottom performance hulls and offshore boats equipped
15 1/4 X 28 RH SS 4 BL (HD 1 1/4 in. Solid Hub) with MerCrusier 496 HO, Mercury Racing 500+ horsepower engines
48-831915A55 400.08 coupled to Bravo One, Bravo One XZ or XR sterndrives. Available in
15 1/4 X 28 LH SS 4 BL (Solid Hub) limited pitch range, the Maximus will ultimately be available in 26" ‑ 36"
L/H & R/H (2" pitch increments). In general if RPM's are at the upper
48-831915A65 441.58 end of the engines range run two inches of pitch less than the Bravo I
15 1/4 X 28 LH SS 4 BL (HD 1 1/4 in. Solid Hub) 4‑blade propeller‑example if runnigh 34" stock Bravo I try running 32"
48-831914A45 379.32 stock Maximus.
15 1/4 X 26 RH SS 4 BL 400.08 Available with Flo‑Torq II SS Hub kit for the Bravo One 1" prop shaft
48-831914A55
MERCURY PROPELLER TYPE 15 1/4 X 26 RH SS 4 BL (HD 1 1/4 in. Solid Hub) 441.58 Available with Flo ‑Torq II SS HD Hub kit for Bravo One XZ/XR and
835258K 2 (A55 series)
15 1/4 X 26 RH SS 4 BL (Solid Hub)
48-831914A65
Bravo XR Sport Master (A65 series)
48-831913A45
379.32
5 Blades for awesome planing performance higher mid‑range cruising
15 1/4 X 26 LH SS 4 BL
and equal or better top end speeds over 4 blades
400.08
48-831913A55
15 1/4 X 26 LH SS 4 BL (Solid Hub)
30" ‑ 32" LH & RH (26" & 28" TBD)
48-831913A65
15 1/4 X 26 LH SS 4 BL (HD 1 1/4 in. Solid Hub)
379.32
48-831912A45
15 1/4 X 24 RH SS 4 BL 441.58
48-831912A55 400.08
15 1/4 X 24 RH SS 4 BL (Solid Hub)
48-831912A65 441.58
15 1/4 X 24 RH SS 4 BL (HD 1 1/4 in. Solid Hub) MAXIMUS PROPELLER
48-831911A45 379.32
15 1/4 X 24 LH SS 4 BL
48-831911A55 400.08
15 1/4 X 24 LH SS 4 BL (Solid Hub)
48-831911A65 441.58
15 1/4 X 24 LH SS 4 BL (HD 1 1/4 in. Solid Hub)
48-831910A45 379.32
15 1/4 X 22 RH SS 4 BL
48-831910A55 400.08
15 1/4 X 22 RH SS 4 BL (Solid Hub)
48-831910A65 441.58 48-889973A65 887.20
15 1/4 X 22 RH SS 4 BL (HD 1 1/4 in. Solid Hub) 15 5/8 X 34 LH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-831909A45 379.32 48-889973A65 887.20
15 1/4 X 22 LH SS 4 BL 15 5/8 X 34 LH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-831909A55 400.08 48-889972A65 887.20
15 1/4 X 22 LH SS 4 BL (Solid Hub) 15 5/8 X 34 RH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-831909A65 441.58 48-889972A65 887.20
15 1/4 X 22 LH SS 4 BL (HD 1 1/4 in. Solid Hub) 15 5/8 X 34 RH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-889971A65 887.20
15 5/8 X 32 LH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-889970A65 887.20
15 5/8 X 32 RH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-889969A65 887.20
15.625 X 30 LH SS 5 BL Equipped with 1.25 inch HD SS Hub Kit
48-889968A65 887.20
15 5/8 X 30 RH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
48-889967A65 887.20
15 5/8 X 28 LH SS 5 BL Equipped with 1 1/4" HD SS Hub Kit
