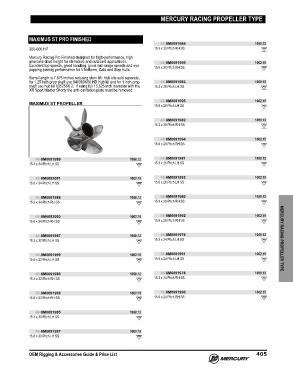

Page 418 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY RACING PROPELLER TYPE

MAXIMUS ST PRO FINISHED
48-8M0091984 1058.12
300‑600 HP 15.3 x 30 Pitch RH SS
Mercury Racing Pro Finished designed for high‑performance, high
gearcase drive height for sterndrive and outboard applications. 48-8M0091996 1002.15
Excellent top speeds, great handling, good mid‑range speeds and eye
popping planing performance for V bottoms, Cats and Step hulls. 15.6 x 30 Pitch RH SS
Barrel length is 7.875 inches reducing stern lift. Hub kits sold separate,
for 1.25 inch prop shaft use 840389K06 HD Hub kit and for 1 inch prop 48-8M0091983 1058.12
shaft use hub kit 835258K 2. If using full 15.625 inch diameter with the 15.3 x 28 Pitch LH SS
XR Sport Master Shorty the anti‑cavitation plate must be removed.

48-8M0091995 1002.15
MAXIMUS ST PROPELLER
15.6 x 28 Pitch LH SS

48-8M0091982 1058.12
15.3 x 28 Pitch RH SS

48-8M0091994 1002.15
15.6 x 28 Pitch RH SS

48-8M0091989 1058.12 48-8M0091981 1058.12
15.3 x 34 Pitch LH SS 15.3 x 26 Pitch LH SS

48-8M0092001 1002.15 48-8M0091993 1002.15
15.6 x 34 Pitch LH SS 15.6 x 26 Pitch LH SS

48-8M0091988 1058.12 48-8M0091980 1058.12
15.3 x 34 Pitch RH SS 15.3 x 26 Pitch RH SS

48-8M0092000 1002.15 48-8M0091992 1002.15
15.6 x 34 Pitch RH SS 15.6 x 26 Pitch RH SS

48-8M0091987 1058.12 48-8M0091979 1058.12
15.3 x 32 Pitch LH SS 15.3 x 24 Pitch LH SS MERCURY RACING PROPELLER TYPE

48-8M0091999 1002.15 48-8M0091991 1002.15
15.6 x 32 Pitch LH SS 15.6 x 24 Pitch LH SS

48-8M0091986 1058.12 48-8M0091978 1058.12
15.3 x 32 Pitch RH SS 15.3 x 24 Pitch RH SS

48-8M0091998 1002.15 48-8M0091990 1002.15
15.6 x 32 Pitch RH SS 15.6 x 24 Pitch RH SS

48-8M0091985 1058.12
15.3 x 30 Pitch LH SS

48-8M0091997 1002.15
15.6 x 30 Pitch LH SS

OEM Rigging & Accessories Guide & Price List 405
