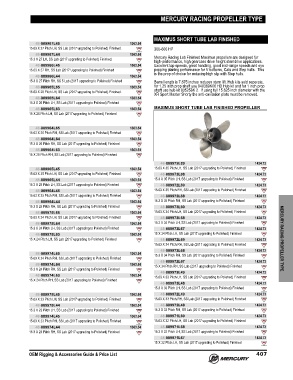

Page 420 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

MERCURY RACING PROPELLER TYPE

MAXIMUS SHORT TUBE LAB FINISHED
48-889967L45 1363.54
15.63 X 27 Pitch LH, SS Lab (2017 upgrading to Polished) Finished. 300‑600 HP
48-889967L44 1363.54
15.3 X 27 LH, SS Lab (2017 upgrading to Polished) Finished. Mercury Racing Lab Finished Maximus propellers are designed for
high‑performance, high gearcase drive height sterndrive applications.
48-889966L45 1363.54 Excellent top speeds, great handling, good mid‑range speeds and eye
15.63 X 27 RH, SS Lab (2017 Upgrading to Polished) Finished popping planing performance for V bottoms, Cats and Step hulls. This
48-889966L44 1363.54 is the prop of choice for reducing high slip with Step hulls.
15.3 X 27 Pitch RH, SS 5 Lab (2017 upgrading to Polished) Finished Barrel length is 7.875 inches reduces stern lift. Hub kits sold seperate,
48-889965L65 1363.54 for 1.25 inch prop shaft use 840389K06 HD Hub kit and for 1 inch prop
15.63 X 26 Pitch LH, SS Lab (2017 upgrading to Polished) Finished. shaft use hub kit 835258K 2. If using full 15.625 inch diameter with the
XR Sport Master Shorty the anti‑cavitation plate must be removed.
48-889965L64 1363.54
15.3 X 26 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
48-889965L63 1363.54 MAXIMUS SHORT TUBE LAB FINISHED PROPELLER
15 X 26 Pitch LH, SS Lab (2017 upgrading to Polished) Finished

48-889964L65 1363.54
15.63 X 26 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
48-889964L64 1363.54
15.3 X 26 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
48-889964L63 1363.54
15 X 26 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
48-889973L89 1424.73
48-889965L45 1363.54 15.63 X 35 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
15.63 X 25 Pitch LH, SS Lab (2017 upgrading to Polished) Finished 48-889973L88 1424.73
48-889965L44 1363.54 15.3 X 35 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
15.3 X 25 Pitch LH, SS Lab (2017 upgrading to Polished) Finished 48-889972L89 1424.73
48-889964L45 1363.54 15.63 X 35 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
15.63 X 25 Pitch RH, SS Lab (2017 upgrading to Polished) Finished 48-889972L88 1424.73
48-889964L44 1363.54 15.3 X 35 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
15.3 X 25 Pitch RH, SS Lab (2017 upgrading to Polished) Finished 48-889973L69 1424.73
48-889975L65 1363.54 15.63 X 34 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
15.63 X 24 Pitch LH, SS Lab (2017 upgrading to Polished) Finished 48-889973L68 1424.73
48-889975L64 1363.54 15.3 X 34 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
15.3 X 24 Pitch LH, SS Lab (2017 upgrading to Polished) Finished 48-889973L67 1424.73
48-889975L63 1363.54 15 X 34 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
15 X 24 Pitch LH, SS Lab (2017 upgrading to Polished) Finished 48-889972L69 1424.73 MERCURY RACING PROPELLER TYPE
15.63 X 34 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
48-889972L68 1424.73
48-889974L65 1363.54 15.3 X 34 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
15.63 X 24 Pitch RH, SS Lab (2017 upgrading to Polished) Finished 48-889972L67 1424.73
48-889974L64 1363.54 15 X 34 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
15.3 X 24 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
48-889973L49 1424.73
48-889974L63 1363.54 15.63 X 33 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
15 X 24 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
48-889973L48 1424.73
15.3 X 33 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
48-889975L45 1363.54 48-889972L49 1424.73
15.63 X 23 Pitch LH, SS Lab (2017 upgrading to Polished) Finished 15.63 X 33 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
48-889975L44 1363.54 48-889972L48 1424.73
15.3 X 23 Pitch LH, SS Lab (2017 upgrading to Polished) Finished 15.3 X 33 Pitch RH, SS Lab (2017 upgrading to Polished) Finished
48-889974L45 1363.54 48-889971L69 1424.73
15.63 X 23 Pitch RH, SS Lab (2017 upgrading to Polished) Finished 15.63 X 32 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
48-889974L44 1363.54 48-889971L68 1424.73
15.3 X 23 Pitch RH, SS Lab (2017 upgrading to Polished) Finished 15.3 X 32 Pitch LH, SS Lab (2017 upgrading to Polished) Finished
48-889971L67 1424.73
15 X 32 Pitch LH, SS Lab (2017 upgrading to Polished) Finished

OEM Rigging & Accessories Guide & Price List 407
