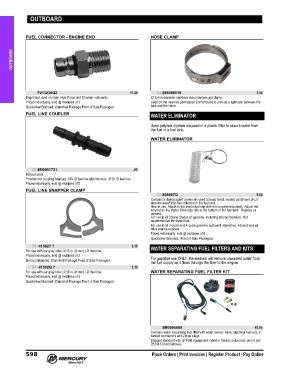

Page 611 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

OUTBOARD

FUEL CONNECTOR - ENGINE END HOSE CLAMP

OUTBOARD

F213238Q2 11.50 54-888988019 1.55
Small inlet used on older style Force and Chrysler outboards. 22.6 mm diameter stainless steel stepless ear clamp.
Priced individually, sold @ multiples of 2 Used on the new low permeation primer bulbs to provide a tight seal between the
Quicksilver Branded, Clamshell Package Point of Sale Packaged. bulb and the valve.
FUEL LINE COUPLER WATER ELIMINATOR

Uses polymer crystals encased in a plastic filter to absorb water from
the fuel in a fuel tank.

WATER ELIMINATOR

22-8M0001721 .95
Barbed ends.
Provides for coupling Mercury .375 ID fuel line with Mercury .3125 ID fuel line.
Priced individually, sold @ multiples of 2
FUEL LINE SNAPPER CLAMP
67-808887Q 9.02
Contains a drying agent commonly used to keep small, sealed containers dry. It
absorbs water that has collected in the fuel tank.
How to use: Attach to the inside fuel cap with the lanyard (included). Adjust the
lanyard so the Water Eliminator sits at the bottom of the fuel tank. Replace as
needed.
For use in all octane grades of gasoline, including ethanol blended. Not
recommended for diesel fuel.
For use in all 2‑cycle and 4‑cycle gasoline outboard, sterndrive, inboard and jet
drive marine engines.
Priced individually, sold @ multiples of 6
Quicksilver Branded, Point of Sale Packaged.
54- 41582T 7 3.15 WATER SEPARATING FUEL FILTERS AND KITS
For use with our gray color, 5/16 in. (8 mm) I.D. fuel line.
Priced individually, sold @ multiples of 2 For gasoline use ONLY, the element will remove unwanted water from
Mercury Branded, Clamshell Package Point of Sale Packaged.
the fuel supply as it flows through the filter to the engine.
54- 41582Q 7 3.15
For use with our gray color, 5/16 in. (8 mm) I.D. fuel line. WATER SEPARATING FUEL FILTER KIT
Priced individually, sold @ multiples of 2
Quicksilver Branded, Clamshell Package Point of Sale Packaged.

8M0095669 61.95
Contains water separating fuel filter with water sensor, base, electrical harness, 2
barbed connectors and 2 pipe plugs.
Shipped standard with all FSM equipped 6‑cylinder Verado outboards, Gen 5 (s/n
2B144123 and above).
598 Place Orders | Print Invoices | Register Product | Pay Online
