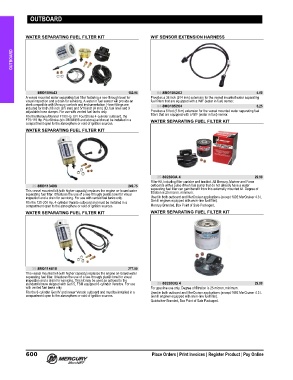

Page 613 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

OUTBOARD

WATER SEPARATING FUEL FILTER KIT WIF SENSOR EXTENSION HARNESS

OUTBOARD

8M0109543 152.95 84-8M0105263 5.00
A vessel mounted water separating fuel filter featuring a see‑through bowl for Provides a 36 inch (914 mm) extension for the vessel mounted water separating
visual inspection and a drain for servicing. A water in fuel sensor will provide an fuel filters that are equipped with a WIF (water in fuel) sensor.
alert compatible with Mercury controls and instrumentation. Hose fittings are 84-8M0105264 6.25
included for both 3/8 inch (9.5 mm) and 5/16 inch (8 mm) I.D. fuel lines and 3
adjustable hose clamps. For use with vented fuel tanks only. Provides a 6 foot (1.8 m) extension for the vessel mounted water separating fuel
Fits the Mercury/Mariner F150 Hp. EFI FourStroke 4‑cylinder outboard, the filters that are equipped with a WIF (water in fuel) sensor.
F75‑115 Hp. FourStroke (s/n 2B094996 and above) and must be installed in a WATER SEPARATING FUEL FILTER KIT
compartment open to the atmosphere or void of ignition sources.
WATER SEPARATING FUEL FILTER KIT

35-802893A 4 29.90
Filter Kit, including filter canister and bracket. All Mercury, Mariner and Force
35-8M0113498 249.75 outboards with a pulse driven fuel pump that do not already have a water
This vessel mounted kit (with higher capacity) replaces the engine on‑board water separating fuel filter can gain benefit from this externally mounted kit. Degree of
filtration is 25 micron. minimum.
separating fuel filter. It features the use of a see‑through plastic bowl for visual
inspection and a drain for servicing. For use with vented fuel tanks only. Used in both outboard and MerCruiser applications (except 1992 MerCruiser 4.3 L
Fits the 135‑200 Hp. 4‑cylinder Verado outboard and must be installed in a Gen II engines equipped with an in‑line fuel filter).
compartment open to the atmosphere or void of ignition sources. Mercury Branded, Box Point of Sale Packaged.
WATER SEPARATING FUEL FILTER KIT WATER SEPARATING FUEL FILTER KIT

35-8M0114618 277.00
This vessel mounted kit (with higher capacity) replaces the engine on‑board water
separating fuel filter. It features the use of a see‑through plastic bowl for visual
inspection and a drain for servicing. This kit may be used as optional to the
standard kit now shipped with Gen 5, FSM equipped 6‑cylinder Verados. For use 35-802893Q 4 29.90
with vented fuel tanks only. For gasoline use only. Degree of filtration is 25 micron, minimum.
Fits the 6‑cylinder Gen IV and newer Verado outboard and must be installed in a Used in both outboard and MerCruiser applications (except 1992 MerCruiser 4.3 L
compartment open to the atmosphere or void of ignition sources. Gen II engines equipped with an in‑line fuel filter).
Quicksilver Branded, Box Point of Sale Packaged.
