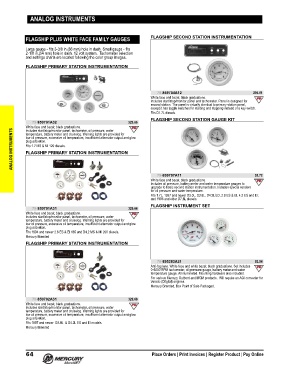

Page 77 - OEM RIGGING AND ACCESSORIES GUIDE (US-2017)

ANALOG INSTRUMENTS

FLAGSHIP PLUS WHITE FACE FAMILY GAUGES FLAGSHIP SECOND STATION INSTRUMENTATION

Large gauge ‑ fits 3‑3/8 in.(86 mm) hole in dash. Small gauge ‑ fits
2‑1/8 in.(54 mm) hole in dash. 12 volt system. Tachometer selection
and settings charts are located following the color group images.

FLAGSHIP PRIMARY STATION INSTRUMENTATION

79-859704A12 205.01
White face and bezel; black graduations.
Includes start/stop/monitor panel and tachometer. Panel is designed for
second station. The panel is virtually identical to primary station panel,
except it has toggle switches for starting and stopping instead of a key switch.
Fits D1.7L diesels.
FLAGSHIP SECOND STATION GAUGE KIT
79-859701A32 329.66
White face and bezel; black graduations.
ANALOG INSTRUMENTS plug activation.
Includes start/stop/monitor panel, tachometer, oil pressure, water
temperature, battery meter and cruiselog. Warning lights are provided for
low oil pressure, excessive oil temperature, insufficient alternator output and glow
Fits 1.7 MS & MI 120 diesels.
FLAGSHIP PRIMARY STATION INSTRUMENTATION

79-859707A11 92.72
White face and bezel; black graduations.
Includes oil pressure, battery meter and water temperature gauges to
upgrade to basic second station instrumentation. Includes special senders
for oil pressure and water temperature.
Fits 1.7L, 1997 and newer D3.0L, D3.6L, D4.2L/LD, 2.8 ES & EI, 4.2 ES and EI;
and 1996 and older D7.3L diesels.
FLAGSHIP INSTRUMENT SET
79-859701A31 329.66
White face and bezel; black graduations.
Includes start/stop/monitor panel, tachometer, oil pressure, water
temperature, battery meter and cruiselog. Warning lights are provided for
low oil pressure, excessive oil temperature, insufficient alternator output and glow
plug activation.
Fits 1994 and newer 2.8 ES & EI 165 and D4.2 MS & MI 200 diesels.
Mercury Branded
FLAGSHIP PRIMARY STATION INSTRUMENTATION

79-895283A21 52.54
Anti‑fog lens. White face and white bezel; black graduations. Set includes
0‑6000 RPM tachometer, oil pressure gauge, battery meter and water
temperature gauge. All illuminated. Mounting hardware also included.
For various Mercury Outbord and MCM products. Will require an AGI converter for
Verado (Ditgital) engines.
Mercury Branded, Box Point of Sale Packaged.

79-859702A31 329.66
White face and bezel; black graduations.
Includes start/stop/monitor panel, tachometer, oil pressure, water
temperature, battery meter and cruiselog. Warning lights are provided for
low oil pressure, excessive oil temperature, insufficient alternator output and glow
plug activation.
Fits 1997 and newer D2.8L & D4.2L ES and EI models.
Mercury Branded
