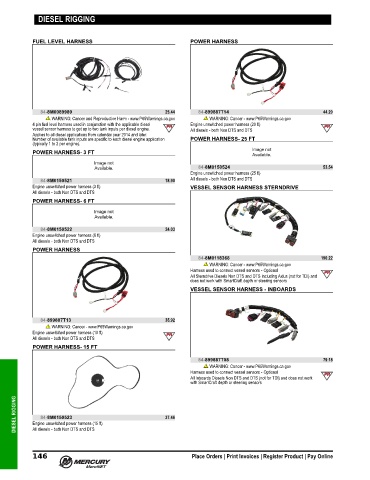

Page 159 - Rigging and Accessories Guide (2022) - 8M0187689

DIESEL RIGGING

FUEL LEVEL HARNESS POWER HARNESS

84-8M0089989 25.44 84-899887T14 44.20
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer - www.P65Warnings.ca.gov
4 pin fuel level harness used in conjunction with the applicable diesel Engine unswitched power harness (20 ft)
vessel sensor harness to get up to two tank inputs per diesel engine. All diesels ‑ both Non DTS and DTS
Applies to all diesel applications from calendar year 2014 and later.
Number of available tank inputs are specific to each diesel engine application POWER HARNESS- 25 FT
(typically 1 to 2 per engine).
POWER HARNESS- 3 FT

84-8M0150524 53.54
Engine unswitched power harness (25 ft)
84-8M0150521 18.90 All diesels ‑ both Non DTS and DTS
Engine unswitched power harness (3 ft) VESSEL SENSOR HARNESS STERNDRIVE
All diesels ‑ both Non DTS and DTS
POWER HARNESS- 6 FT

84-8M0150522 24.03
Engine unswitched power harness (6 ft)
All diesels ‑ both Non DTS and DTS
POWER HARNESS
84-8M0118368 190.22
WARNING: Cancer - www.P65Warnings.ca.gov
Harness used to connect vessel sensors ‑ Optional
All Sterndrive Diesels Non DTS and DTS Including Axius (not for TDI) and
does not work with SmartCraft depth or steering sensors
VESSEL SENSOR HARNESS - INBOARDS

84-899887T13 35.92
WARNING: Cancer - www.P65Warnings.ca.gov
Engine unswitched power harness (10 ft)
All diesels ‑ both Non DTS and DTS
POWER HARNESS- 15 FT

84-899887T08 79.18
WARNING: Cancer - www.P65Warnings.ca.gov
Harness used to connect vessel sensors ‑ Optional
All Inboards Diesels Non DTS and DTS (not for TDI) and does not work
with SmartCraft depth or steering sensors

DIESEL RIGGING Engine unswitched power harness (15 ft) 37.46

84-8M0150523
All diesels ‑ both Non DTS and DTS
