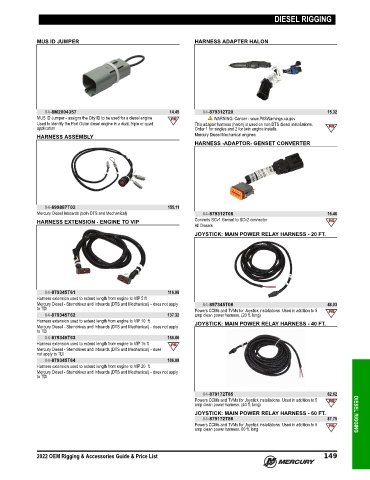

Page 162 - Rigging and Accessories Guide (2022) - 8M0187689

DIESEL RIGGING

MUS ID JUMPER HARNESS ADAPTER HALON

84-8M2004357 14.45 84-879312T20 15.32
MUS ID Jumper ‑ assigns the City ID to be used for a diesel engine WARNING: Cancer - www.P65Warnings.ca.gov
Used to identify the Port Outer diesel engine in a dual, triple or quad This adapter harness (halon) is used on non DTS diesel installations.
application Order 1 for singles and 2 for twin engine installs.
HARNESS ASSEMBLY Mercury Diesel Mechanical engines
HARNESS -ADAPTOR- GENSET CONVERTER

84-899887T02 155.11
Mercury Diesel Inboards (both DTS and Mechanical) 84-879312T08 16.46
HARNESS EXTENSION - ENGINE TO VIP Converts SCv1 Genset to SCv2 connector
All Diesels
JOYSTICK: MAIN POWER RELAY HARNESS - 20 FT.

84-879345T61 116.98
Harness extension used to extend length from engine to VIP 5 ft
Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply 84-897345T08 48.03
to TDI Powers CCMs and TVMs for Joystick installations. Used in addition to 5
84-879345T62 137.32 amp clean power harness. (20 ft. long)
Harness extension used to extend length from engine to VIP 10 ft JOYSTICK: MAIN POWER RELAY HARNESS - 40 FT.
Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
to TDI
84-879345T63 155.66
Harness extension used to extend length from engine to VIP 15 ft
Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does
not apply to TDI
84-879345T64 186.08
Harness extension used to extend length from engine to VIP 20 ft
Mercury Diesel ‑ Sterndrives and Inboards (DTS and Mechanical) ‑ does not apply
to TDI

84-879172T85 62.62
Powers CCMs and TVMs for Joystick installations. Used in addition to 5
amp clean power harness. (40 ft. long)
JOYSTICK: MAIN POWER RELAY HARNESS - 60 FT. DIESEL RIGGING
84-879172T86 87.75
Powers CCMs and TVMs for Joystick installations. Used in addition to 5
amp clean power harness. 60 ft. long

2022 OEM Rigging & Accessories Guide & Price List 149
