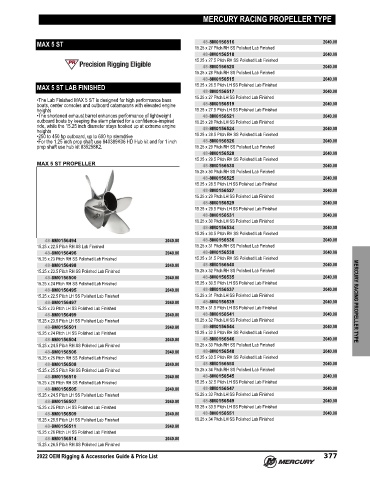

Page 390 - Rigging and Accessories Guide (2022) - 8M0187689

MERCURY RACING PROPELLER TYPE

MAX 5 ST 48-8M0156516 2040.00
15.25 x 27 Pitch RH SS Polished Lab Finished
48-8M0156518 2040.00
15.25 x 27.5 Pitch RH SS Polished Lab Finished
48-8M0156520 2040.00
15.25 x 28 Pitch RH SS Polished Lab Finished
48-8M0156515 2040.00
MAX 5 ST LAB FINISHED 15.25 x 26.5 Pitch LH SS Polished Lab Finished
48-8M0156517 2040.00
15.25 x 27 Pitch LH SS Polished Lab Finished
•The Lab Finished MAX 5 ST is designed for high performance bass
boats, center consoles and outboard catamarans with elevated engine 48-8M0156519 2040.00
heights 15.25 x 27.5 Pitch LH SS Polished Lab Finished
•The shortened exhaust barrel enhances performance of lightweight 48-8M0156521 2040.00
outboard boats by keeping the stern planted for a confidence‑inspired 15.25 x 28 Pitch LH SS Polished Lab Finished
ride, while the 15.25 inch diameter stays hooked up at extreme engine 2040.00
heights 48-8M0156524
•250 to 450 hp outboard, up to 600 hp sterndrive 15.25 x 28.5 Pitch RH SS Polished Lab Finished
•For the 1.25 inch prop shaft use 840389K06 HD Hub kit and for 1 inch 48-8M0156526 2040.00
prop shaft use hub kit 835258K2. 15.25 x 29 Pitch RH SS Polished Lab Finished
48-8M0156528 2040.00
15.25 x 29.5 Pitch RH SS Polished Lab Finished
MAX 5 ST PROPELLER 48-8M0156530 2040.00
15.25 x 30 Pitch RH SS Polished Lab Finished
48-8M0156525 2040.00
15.25 x 28.5 Pitch LH SS Polished Lab Finished
48-8M0156527 2040.00
15.25 x 29 Pitch LH SS Polished Lab Finished
48-8M0156529 2040.00
15.25 x 29.5 Pitch LH SS Polished Lab Finished
48-8M0156531 2040.00
15.25 x 30 Pitch LH SS Polished Lab Finished
48-8M0156534 2040.00
15.25 x 30.5 Pitch RH SS Polished Lab Finished
48-8M0156494 2040.00 48-8M0156536 2040.00
15.25 x 22.5 Pitch RH SS Lab Finished 15.25 x 31 Pitch RH SS Polished Lab Finished
48-8M0156496 2040.00 48-8M0156538 2040.00
15.25 x 23 Pitch RH SS Polished Lab Finished 15.25 x 31.5 Pitch RH SS Polished Lab Finished
48-8M0156498 2040.00 48-8M0156540 2040.00
15.25 x 23.5 Pitch RH SS Polished Lab Finished 15.25 x 32 Pitch RH SS Polished Lab Finished
48-8M0156500 2040.00 48-8M0156535 2040.00
15.25 x 24 Pitch RH SS Polished Lab Finished 15.25 x 30.5 Pitch LH SS Polished Lab Finished
48-8M0156495 2040.00 48-8M0156537 2040.00
15.25 x 22.5 Pitch LH SS Polished Lab Finished 15.25 x 31 Pitch LH SS Polished Lab Finished
48-8M0156497 2040.00 48-8M0156539 2040.00 MERCURY RACING PROPELLER TYPE
15.25 x 23 Pitch LH SS Polished Lab Finished 15.25 x 31.5 Pitch LH SS Polished Lab Finished
48-8M0156499 2040.00 48-8M0156541 2040.00
15.25 x 23.5 Pitch LH SS Polished Lab Finished 15.25 x 32 Pitch LH SS Polished Lab Finished
48-8M0156501 2040.00 48-8M0156544 2040.00
15.25 x 24 Pitch LH SS Polished Lab Finished 15.25 x 32.5 Pitch RH SS Polished Lab Finished
48-8M0156504 2040.00 48-8M0156546 2040.00
15.25 x 24.5 Pitch RH SS Polished Lab Finished 15.25 x 33 Pitch RH SS Polished Lab Finished
48-8M0156506 2040.00 48-8M0156548 2040.00
15.25 x 25 Pitch RH SS Polished Lab Finished 15.25 x 33.5 Pitch RH SS Polished Lab Finished
48-8M0156508 2040.00 48-8M0156550 2040.00
15.25 x 25.5 Pitch RH SS Polished Lab Finished 15.25 x 34 Pitch RH SS Polished Lab Finished
48-8M0156510 2040.00 48-8M0156545 2040.00
15.25 x 26 Pitch RH SS Polished Lab Finished 15.25 x 32.5 Pitch LH SS Polished Lab Finished
48-8M0156505 2040.00 48-8M0156547 2040.00
15.25 x 24.5 Pitch LH SS Polished Lab Finished 15.25 x 33 Pitch LH SS Polished Lab Finished
48-8M0156507 2040.00 48-8M0156549 2040.00
15.25 x 25 Pitch LH SS Polished Lab Finished 15.25 x 33.5 Pitch LH SS Polished Lab Finished
48-8M0156509 2040.00 48-8M0156551 2040.00
15.25 x 25.5 Pitch LH SS Polished Lab Finished 15.25 x 34 Pitch LH SS Polished Lab Finished
48-8M0156511 2040.00
15.25 x 26 Pitch LH SS Polished Lab Finished
48-8M0156514 2040.00
15.25 x 26.5 Pitch RH SS Polished Lab Finished
2022 OEM Rigging & Accessories Guide & Price List 377
