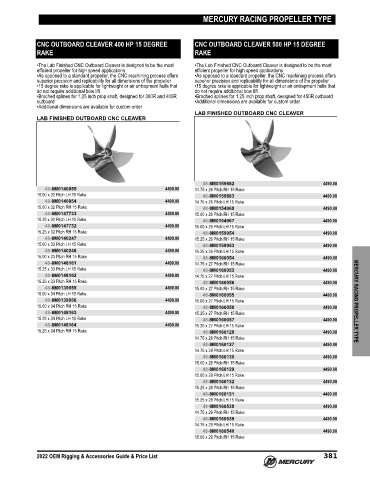

Page 394 - Rigging and Accessories Guide (2022) - 8M0187689

MERCURY RACING PROPELLER TYPE

CNC OUTBOARD CLEAVER 400 HP 15 DEGREE CNC OUTBOARD CLEAVER 500 HP 15 DEGREE
RAKE RAKE

•The Lab Finished CNC Outboard Cleaver is designed to be the most •The Lab Finished CNC Outboard Cleaver is designed to be the most
efficient propeller for high speed applications efficient propeller for high speed applications
•As opposed to a standard propeller, the CNC machining process offers •As opposed to a standard propeller, the CNC machining process offers
superior precision and replicability for all dimensions of the propeller superior precision and replicability for all dimensions of the propeller
•15 degree rake is applicable for lightweight or air entrapment hulls that •15 degree rake is applicable for lightweight or air entrapment hulls that
do not require additional bow lift do not require additional bow lift
•Broched splines for 1.25 inch prop shaft, designed for 300R and 400R •Broched splines for 1.25 inch prop shaft, designed for 450R outboard
outboard •Additional dimensions are available for custom order
•Additional dimensions are available for custom order
LAB FINISHED OUTBOARD CNC CLEAVER
LAB FINISHED OUTBOARD CNC CLEAVER

48-8M0159882 4490.00
48-8M0140855 4490.00 14.75 x 26 Pitch RH 15 Rake
15.00 x 32 Pitch LH 15 Rake 48-8M0159883 4490.00
48-8M0140854 4490.00 14.75 x 26 Pitch LH 15 Rake
15.00 x 32 Pitch RH 15 Rake 48-8M0154968 4490.00
48-8M0147733 4490.00 15.00 x 26 Pitch RH 15 Rake
15.25 x 32 Pitch LH 15 Rake 48-8M0154967 4490.00
48-8M0147732 4490.00 15.00 x 26 Pitch LH 15 Rake
15.25 x 32 Pitch RH 15 Rake 48-8M0159954 4490.00
48-8M0140247 4490.00 15.25 x 26 Pitch RH 15 Rake
15.00 x 33 Pitch LH 15 Rake 48-8M0159953 4490.00
48-8M0140248 4490.00 15.25 x 26 Pitch LH 15 Rake
15.00 x 33 Pitch RH 15 Rake 48-8M0160054 4490.00
48-8M0148161 4490.00 14.75 x 27 Pitch RH 15 Rake
15.25 x 33 Pitch LH 15 Rake 48-8M0160053 4490.00
48-8M0148162 4490.00 14.75 x 27 Pitch LH 15 Rake
15.25 x 33 Pitch RH 15 Rake 48-8M0160056 4490.00
48-8M0139055 4490.00 15.00 x 27 Pitch RH 15 Rake
15.00 x 34 Pitch LH 15 Rake 48-8M0160055 4490.00
48-8M0139056 4490.00 15.00 x 27 Pitch LH 15 Rake MERCURY RACING PROPELLER TYPE
15.00 x 34 Pitch RH 15 Rake 48-8M0160058 4490.00
48-8M0148163 4490.00 15.25 x 27 Pitch RH 15 Rake
15.25 x 34 Pitch LH 15 Rake 48-8M0160057 4490.00
48-8M0148164 4490.00 15.25 x 27 Pitch LH 15 Rake
15.25 x 34 Pitch RH 15 Rake 48-8M0160128 4490.00
14.75 x 28 Pitch RH 15 Rake
48-8M0160127 4490.00
14.75 x 28 Pitch LH 15 Rake
48-8M0160130 4490.00
15.00 x 28 Pitch RH 15 Rake
48-8M0160129 4490.00
15.00 x 28 Pitch LH 15 Rake
48-8M0160132 4490.00
15.25 x 28 Pitch RH 15 Rake
48-8M0160131 4490.00
15.25 x 28 Pitch LH 15 Rake
48-8M0160538 4490.00
14.75 x 29 Pitch RH 15 Rake
48-8M0160539 4490.00
14.75 x 29 Pitch LH 15 Rake
48-8M0160540 4490.00
15.00 x 29 Pitch RH 15 Rake

2022 OEM Rigging & Accessories Guide & Price List 381
