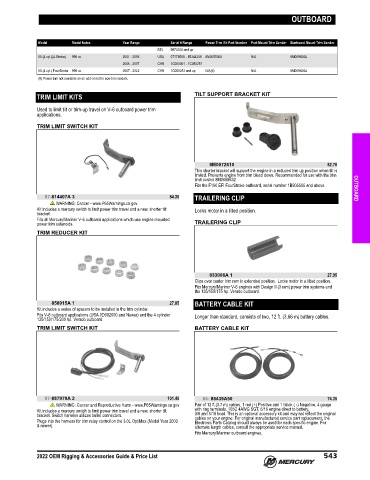

Page 556 - Rigging and Accessories Guide (2022) - 8M0187689

OUTBOARD

Model Model Notes Year Range Serial # Range Power Trim Kit Part Number Port Mount Trim Sender Starboard Mount Trim Sender
BEL 9973100 and up
60 (4 cyl.)(4-Stroke) 996 cc. 2001 - 2006 USA 0T178500 - 1B344306 8M0055008 N/A 8M0098264
2006 - 2007 CHN 1C000001 - 1C050251
60 (4 cyl.) FourStroke 996 cc. 2007 - 2022 CHN 1C050252 and up N/A(6) N/A 8M0098264
(6) Power trim not available as an add-on kit for non-trim models.

TRIM LIMIT KITS TILT SUPPORT BRACKET KIT

Used to limit tilt or trim‑up travel on V‑6 outboard power trim
applications.

TRIM LIMIT SWITCH KIT

8M0072610 62.70
This shorter bracket will support the engine in a reduced trim up position when tilt is
limited. Prevents engine from trim bleed down. Recommended for use with the trim
limit control 8M0059532.
Fits the F150 EFI FourStroke outboard, serial number 1B905505 and above. OUTBOARD
87-814407A 3 84.20 TRAILERING CLIP
WARNING: Cancer - www.P65Warnings.ca.gov
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt Locks motor in a tilted position.
bracket.
Fits all Mercury/Mariner V‑6 outboard applications which use engine mounted
power trim solenoids. TRAILERING CLIP
TRIM REDUCER KIT

833006A 1 27.95
Clips over center trim ram in extended position. Locks motor in a tilted position.
Fits Mercury/Mariner V‑6 engines with Design II (3 ram) power trim systems and
the 135/150/175 hp. Verado outboard.
858915A 1 27.85 BATTERY CABLE KIT
Kit includes a series of spacers to be installed in the trim cylinder.
Fits V‑6 outboard applications (USA 0D082000 and Newer) and the 4 cylinder Longer than standard, consists of two, 12 ft. (3.66 m) battery cables.
135/150/175/200 hp. Verado outboard.
TRIM LIMIT SWITCH KIT BATTERY CABLE KIT

87-887979A 2 101.45 84- 88439A50 74.35
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Pair of 12 ft.(3.7 m) cables, 1 red (+) Positive and 1 black ( ‑) Negative, 4 gauge
Kit includes a mercury switch to limit power trim travel and a new, shorter tilt with ring terminals. 105C 4AWG SGT, 5/16 engine direct to battery,
bracket. Switch harness utilizes bullet connectors. 3/8 and 5/16 boat. This is an optional accessory kit and may not reflect the original
cables on your engine. For original manufactured service part replacement, the
Plugs into the harness for trim relay control on the 3.0L OptiMax (Model Year 2003 Electronic Parts Catalog should always be used for each specific engine. For
& newer). alternate length cables, consult the appropriate service manual.
Fits Mercury/Mariner outboard engines.

2022 OEM Rigging & Accessories Guide & Price List 543
