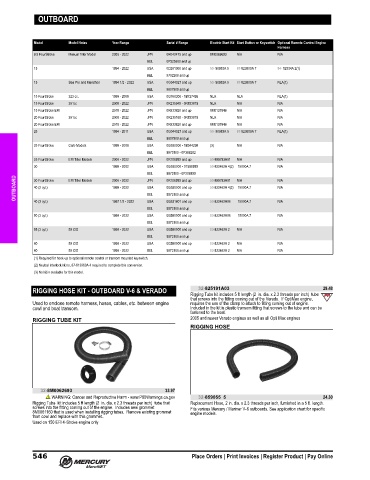

Page 559 - Rigging and Accessories Guide (2022) - 8M0187689

OUTBOARD

Model Model Notes Year Range Serial # Range Electric Start Kit Start Button or Keyswitch Optional Remote Control Engine
Harness
9.9 FourStroke Manual Tiller Model 2005 - 2022 JPN 0R042475 and up 8M0069693 N/A N/A
BEL 0P325500 and up
15 1994 - 2022 USA 0D281000 and up 50- 90983A 5 87-823609A 7 84- 12334A 2(1)
BEL 9792200 and up
15 Sea Pro and Marathon 1994 1/2 - 2022 USA 0G044027 and up 50- 90983A 5 87-823609A 7 NLA(1)
BEL 9807909 and up
15 FourStroke 323 cc. 1999 - 2008 USA 0G760300 - 1B727495 NLA NLA NLA(1)
15 FourStroke 351cc 2008 - 2022 JPN 0R235949 - 0R833819 NLA N/A N/A
15 FourStroke EFI 2018 - 2022 JPN 0R833820 and up 8M0137846 N/A N/A
20 FourStroke 351cc 2008 - 2022 JPN 0R235168 - 0R833819 NLA N/A N/A
20 FourStroke EFI 2018 - 2022 JPN 0R833820 and up 8M0137846 N/A N/A
25 1994 - 2011 USA 0G044027 and up 50- 90983A 5 87-823609A 7 NLA(1)
BEL 9807909 and up
25 FourStroke Carb Models 1998 - 2006 USA 0G590000 - 1B344298 (3) N/A N/A
BEL 9973100 - 0P388282
25 FourStroke EFI Tiller Models 2006 - 2022 JPN 0R106999 and up 50-899783A01 N/A N/A
30 1998 - 2002 USA 0G590000 - 0T598999 50-822462A 4(2) 15000A 7 N/A
30 FourStroke EFI Tiller Models 2006 - 2022 BEL 9973100 - 0P206999 50-899783A01 N/A N/A
OUTBOARD 40 (2 cyl.) 1998 - 2022 USA 0G590000 and up 50-822462A 4(2) 15000A 7 N/A
JPN
0R106999 and up

BEL

9973100 and up

9973100 and up

BEL

40 (3 cyl.) 1997 1/2 - 2022 USA 0G531801 and up 50-822462A06 15000A 7 N/A
50 (3 cyl.) 1998 - 2022 USA 0G590000 and up 50-822462A06 15000A 7 N/A
BEL 9973100 and up
55 (3 cyl.) 59 CID 1998 - 2022 USA 0G590000 and up 50-822462A 2 N/A N/A
BEL 9973100 and up
60 59 CID 1998 - 2022 USA 0G590000 and up 50-822462A 2 N/A N/A
60 59 CID 1998 - 2022 BEL 9973100 and up 50-822462A 2 N/A N/A
(1) Required for hook-up to optional remote control or transom mounted keyswitch.
(2) Neutral Interlock kit no. 87-813960A 4 required to complete this conversion.
(3) No kit is available for this model.
RIGGING HOSE KIT - OUTBOARD V-6 & VERADO 32-825191A03 29.48
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube
that screws into the fitting coming out of the Verado. If OptiMax engine,
Used to enclose remote harness, hoses, cables, etc. between engine requires the use of the clamp to attach to fitting coming out of engine.
cowl and boat transom. Included in the kit is plastic transom fitting that screws to the tube and can be
fastened to the boat.
RIGGING TUBE KIT 2005 and newer Verado engines as well as all Opti Max engines
RIGGING HOSE

32-8M0062693 33.97
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov 32-859055 5 24.30
Rigging Tube kit includes 5 ft length (2 in. dia. x 2.3 threads per inch) tube that Replacement Hose, 2 in. dia. x 2.3 threads per inch, furnished in a 5 ft. length.
screws into the fitting coming out of the engine. Includes new grommet Fits various Mercury / Mariner V‑6 outboards. See application chart for specific
8M0061160 that is used when installing rigging tubes. Remove existing grommet engine models.
from cowl and replace with this grommet..
Used on 150 EFI 4‑Stroke engine only
