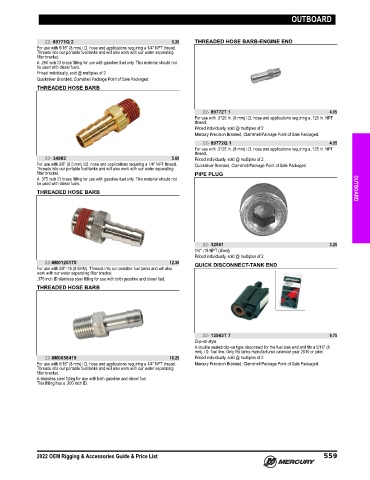

Page 572 - Rigging and Accessories Guide (2022) - 8M0187689

OUTBOARD

22- 89771Q 2 5.35 THREADED HOSE BARB-ENGINE END
For use with 5/16" (8 mm) I.D. hose and applications requiring a 1/4" NPT thread.
Threads into our portable fuel tanks and will also work with our water separating
filter bracket.
A .250 inch ID brass fitting for use with gasoline fuel only. This material should not
be used with diesel fuels.
Priced individually, sold @ multiples of 2
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
THREADED HOSE BARB

22- 89772T 1 4.05
For use with .3125 In. (8 mm) I.D. hose and applications requiring a .125 In. NPT
thread.
Priced individually, sold @ multiples of 2
Mercury Precision Branded, Clamshell Package Point of Sale Packaged.
22- 89772Q 1 4.05
For use with .3125 In. (8 mm) I.D. hose and applications requiring a .125 In. NPT
thread.
22- 34982 5.60 Priced individually, sold @ multiples of 2
For use with 3/8" (9.5 mm) I.D. hose and applications requiring a 1/4" NPT thread. Quicksilver Branded, Clamshell Package Point of Sale Packaged.
Threads into our portable fuel tanks and will also work with our water separating
filter bracket. PIPE PLUG
A .375 inch ID brass fitting for use with gasoline fuel only. This material should not
be used with diesel fuels.
THREADED HOSE BARB OUTBOARD

22- 32561 3.25
1/4" ‑18 NPT (Steel)
Priced individually, sold @ multiples of 2
22-8M0125175 12.30 QUICK DISCONNECT-TANK END
For use with 3/8"‑18 (9.5MM). Threads into our portable fuel tanks and will also
work with our water separating filter bracket.
.375 inch ID stainless steel fitting for use with both gasoline and diesel fuel.
THREADED HOSE BARB

22- 13563T 7 9.75
Clip‑on style.
A double sealed clip‑on type disconnect for the fuel tank end and fits a 5/16" (8
mm) I.D. fuel line. Only fits tanks manufactured calendar year 2010 or prior.
22-8M0058419 18.25 Priced individually, sold @ multiples of 2
For use with 5/16" (8 mm) I.D. hose and applications requiring a 1/4" NPT thread. Mercury Precision Branded, Clamshell Package Point of Sale Packaged.
Threads into our portable fuel tanks and will also work with our water separating
filter bracket.
A stainless steel fitting for use with both gasoline and diesel fuel.
This fitting has a .300 inch ID.

2022 OEM Rigging & Accessories Guide & Price List 559
