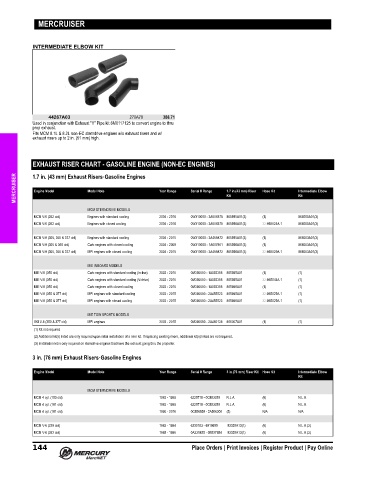

Page 157 - US ACCESSORIES GUIDE (2019)

MERCRUISER

INTERMEDIATE ELBOW KIT

44267A03 270A70 386.71
Used in conjunction with Exhaust "Y" Pipe kit 8M0117125 to convert engine to thru
prop exhaust.
Fits MCM 8.1L & 8.2L non‑EC sterndrive engines w/o exhaust risers and w/
exhaust risers up to 2 in. (51 mm) high.

EXHAUST RISER CHART - GASOLINE ENGINE (NON-EC ENGINES)

MERCRUISER 1.7 in. (43 mm) Exhaust Risers‑Gasoline Engines Year Range Serial # Range 1.7 in.(43 mm) Riser Hose Kit Intermediate Elbow

Engine Model
Model Note
Kit
Kit
MCM STERNDRIVE MODELS
MCM V-6 (262 cid) Engines with standard cooling 2004 - 2016 0W310000 - 2A506375 865995A01(2) (1) 866000A01(3)
MCM V-6 (262 cid) Engines with closed cooling 2004 - 2016 0W310000 - 2A506375 865996A01(2) 32-865024A 1 866000A01(3)

MCM V-8 (305, 350 & 377 cid) Engines with standard cooling 2004 - 2015 0W310000 - 2A455872 865995A01(2) (1) 866003A01(3)
MCM V-8 (305 & 350 cid) Carb engines with closed cooling 2004 - 2009 0W310000 - 1A607561 865996A01(2) (1) 866003A01(3)
MCM V-8 (305, 350 & 377 cid) MPI engines with closed cooling 2004 - 2015 0W310000 - 2A455872 865996A01(2) 32-865029A 1 866003A01(3)

MIE INBOARD MODELS
MIE V-8 (350 cid) Carb engines with standard cooling (in-line) 2002 - 2010 0M390000 - 1A092388 865995A01 (1) (1)
MIE V-8 (350 cid) Carb engines with standard cooling (V-drive) 2002 - 2010 0M390000 - 1A092388 865995A01 32-865043A 1 (1)
MIE V-8 (350 cid) Carb engines with closed cooling 2002 - 2010 0M390000 - 1A092388 865996A01 (1) (1)
MIE V-8 (350 & 377 cid) MPI engines with standard cooling 2002 - 2015 0M390000 - 2A455523 865995A01 32-865029A 1 (1)
MIE V-8 (350 & 377 cid) MPI engines with closed cooling 2002 - 2015 0M390000 - 2A455523 865996A01 32-865029A 1 (1)

MIE TOW SPORTS MODELS
SKI V-8 (350 & 377 cid) MPI engines 2002 - 2015 0M390000 - 2A460138 866007A01 (1) (1)
(1) Kit not required
(2) Additional kit(s) listed are only required upon initial installation of a riser kit. If replacing existing risers, additional kit(s) listed are not required.
(3) Installation kit is only required on sterndrive engines that have the exhaust going thru the propeller.

3 in. (76 mm) Exhaust Risers‑Gasoline Engines

Engine Model Model Note Year Range Serial # Range 3 in.(76 mm) Riser Kit Hose Kit Intermediate Elbow
Kit

MCM STERNDRIVE MODELS
MCM 4 cyl. (153 cid) 1983 - 1989 6229718 - 0C853255 N.L.A. (6) N.L.A.
MCM 4 cyl. (181 cid) 1983 - 1989 6229718 - 0C853255 N.L.A. (6) N.L.A.
MCM 4 cyl. (181 cid) 1990 - 2016 0C856559 - 2A506300 (5) N/A N/A

MCM V-6 (229 cid) 1983 - 1984 6330183 - 6919655 93320A13(1) (6) N.L.A.(3)
MCM V-6 (262 cid) 1985 - 1986 0A331455 - 0B527954 93320A13(1) (6) N.L.A.(3)
