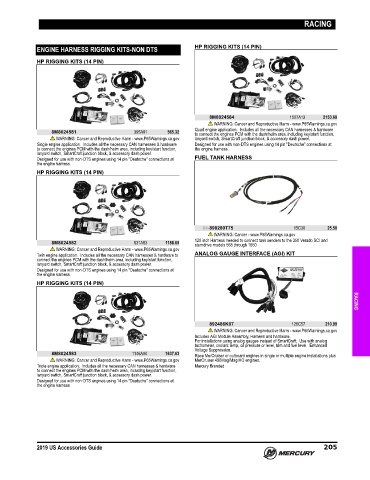

Page 218 - US ACCESSORIES GUIDE (2019)

RACING

ENGINE HARNESS RIGGING KITS-NON DTS HP RIGGING KITS (14 PIN)

HP RIGGING KITS (14 PIN)

8M8024584 1507A13 2153.68
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
8M8024581 395A61 565.32 Quad engine application. Includes all the necessary CAN harnesses & hardware
to connect the engines PCM with the dash/helm area, including key/start function,
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov lanyard switch, SmartCraft junction block, & accessory dash power.
Single engine application. Includes all the necessary CAN harnesses & hardware Designed for use with non‑DTS engines using 14 pin "Deutsche" connections at
to connect the engines PCM with the dash/helm area, including key/start function, the engine harness.
lanyard switch, SmartCraft junction block, & accessory dash power.
Designed for use with non‑DTS engines using 14 pin "Deutsche" connections at FUEL TANK HARNESS
the engine harness.
HP RIGGING KITS (14 PIN)

84-898289T75 15C30 25.50
WARNING: Cancer - www.P65Warnings.ca.gov
120 inch Harness needed to connect tank senders to the 350 Verado SCI and
8M8024582 831A83 1188.69 sterndrive models 565 through 1650
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Twin engine application. Includes all the necessary CAN harnesses & hardware to ANALOG GAUGE INTERFACE (AGI) KIT
connect the engines PCM with the dash/helm area, including key/start function,
lanyard switch, SmartCraft junction block, & accessory dash power.
Designed for use with non‑DTS engines using 14 pin "Deutsche" connections at
the engine harness.
HP RIGGING KITS (14 PIN) RACING

892486K07 126C57 210.99
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Includes AGI Module Assembly, Harness and hardware.
For installations using analog gauges instead of SmartCraft. Use with analog
tachometer, coolant temp, oil pressure or level, trim and fuel level. Enhanced
Voltage Suppression.
8M8024583 1146A00 1637.63 Race MerCruiser or outboard engines in single or multiple engine installations plus
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov MerCruiser 496Mag/Mag HO engines.
Triple engine application. Includes all the necessary CAN harnesses & hardware Mercury Branded
to connect the engines PCM with the dash/helm area, including key/start function,
lanyard switch, SmartCraft junction block, & accessory dash power.
Designed for use with non‑DTS engines using 14 pin "Deutsche" connections at
the engine harness.
