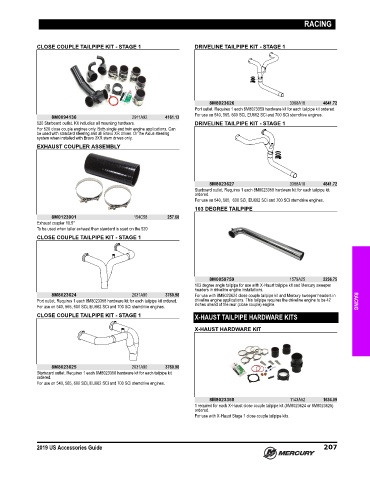

Page 220 - US ACCESSORIES GUIDE (2019)

RACING

CLOSE COUPLE TAILPIPE KIT - STAGE 1 DRIVELINE TAILPIPE KIT - STAGE 1

8M8023626 3388A18 4841.72
Port outlet. Requires 1 each 8M8023359 hardware kit for each tailpipe kit ordered.
For use on 540, 565, 600 SCi, EU662 SCi and 700 SCi sterndrive engines.
8M0094136 2911A92 4161.13
520 Starboard outlet. Kit includles all mounting hardware. DRIVELINE TAILPIPE KIT - STAGE 1
For 520 close couple engines only. Both single and twin engine applications. Can
be used with standard steering and all Bravo XR drives. Or the Axius steering
system when installed with Bravo 3XR stern drives only.
EXHAUST COUPLER ASSEMBLY

8M8023627 3388A18 4841.72
Starboard outlet. Requires 1 each 8M8023359 hardware kit for each tailpipe kit
ordered.
For use on 540, 565, 600 SCi, EU662 SCi and 700 SCi sterndrive engines.
103 DEGREE TAILPIPE
8M0123001 154C58 257.68
Exhaust coupler 10.5"
To be used when taller exhaust than standard is used on the 520
CLOSE COUPLE TAILPIPE KIT - STAGE 1

8M0059759 1579A25 2256.75
103 degree angle tailpipe for use with X‑Haust tailpipe kit and Mercury sweeper
headers in driveline engine installations.
8M8023624 2631A90 3760.98 For use with 8M8023624 close couple tailpipe kit and Mercury sweeper headers in
Port outlet. Requires 1 each 8M8023358 hardware kit for each tailpipe kit ordered. driveline engine applications. This tailpipe requires the driveline engine to be 42 RACING
For use on 540, 565, 600 SCi, EU662 SCi and 700 SCi sterndrive engines. inches ahead of the rear (close couple) engine.
CLOSE COUPLE TAILPIPE KIT - STAGE 1 X-HAUST TAILPIPE HARDWARE KITS

X-HAUST HARDWARE KIT

8M8023625 2631A90 3760.98
Starboard outlet. Requires 1 each 8M8023358 hardware kit for each tailpipe kit
ordered.
For use on 540, 565, 600 SCi, EU662 SCi and 700 SCi sterndrive engines.

8M8023358 1143A52 1634.09
1 required for each X‑Haust close couple tailpipe kit (8M8023624 or 8M8023625)
ordered.
For use with X‑Haust Stage 1 close couple tailpipe kits.

2019 US Accessories Guide 207
