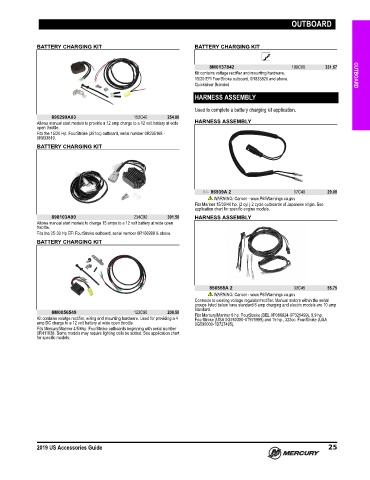

Page 38 - US ACCESSORIES GUIDE (2019)

OUTBOARD

BATTERY CHARGING KIT BATTERY CHARGING KIT

8M0137842 199C00 331.67
Kit contains voltage rectifier and mounting hardware. OUTBOARD
15/20 EFI FourStroke outboard, 0R833820 and above.
Quicksilver Branded
HARNESS ASSEMBLY

Used to complete a battery charging kit application.
895299A03 152C40 254.00
Allows manual start models to provide a 12 amp charge to a 12 volt battery at wide HARNESS ASSEMBLY
open throttle.
Fits the 15/20 Hp. FourStroke (351cc) outboard, serial number 0R235168 ‑
0R833819.
BATTERY CHARGING KIT

84- 86939A 2 17C40 29.00
WARNING: Cancer - www.P65Warnings.ca.gov
Fits Mariner 15/30/40 hp. (2 cyl.) 2 cycle outboards of Japanese origin. See
application chart for specific engine models.
898103A90 234C90 391.50 HARNESS ASSEMBLY
Allows manual start models to charge 15 amps to a 12 volt battery at wide open
throttle.
Fits the 25‑30 Hp EFI FourStroke outboard, serial number 0R106999 & above.
BATTERY CHARGING KIT

856558A 2 33C45 55.75
WARNING: Cancer - www.P65Warnings.ca.gov
Connects to existing voltage regulator/rectifier. Manual motors within the serial
groups listed below have standard 6 amp charging and electric models are 10 amp
standard.
8M0056549 123C90 206.50 Fits Mercury/Mariner 8 hp. FourStroke (BEL 0P086824‑0P325499), 9.9 hp.
Kit contains volatge rectifier, wiring and mounting hardware. Used for providing a 4 FourStroke (USA 0G760300‑0T979999) and 15 hp., 323cc. FourStroke (USA
amp DC charge to a 12 volt battery at wide open throttle. 0G590000‑1B727495).
Fits Mercury/Mariner 4/5/6hp. FourStroke outboards beginning with serial number
0R411838. Some models may require lighting coils be added. See application chart
for specific models.

2019 US Accessories Guide 25
