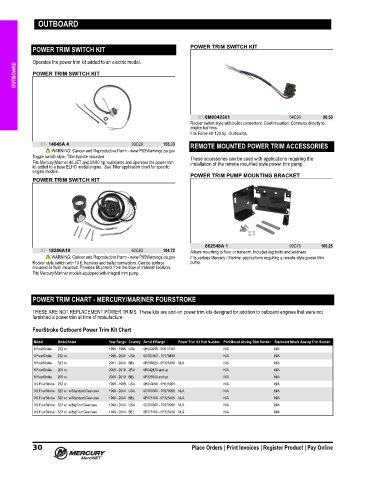

Page 43 - US ACCESSORIES GUIDE (2019)
P. 43

OUTBOARD



            POWER TRIM SWITCH KIT                               POWER TRIM SWITCH KIT

            Operates the power trim kit added to an electric model.
      OUTBOARD  POWER TRIM SWITCH KIT









                                                                   87-8M0042301                  54C30      90.50
                                                                Rocker switch style with bullet connectors. Cowl mounted. Connects directly to
                                                                engine harness.
                                                                Fits Force 40‑120 hp. Outboards.
              87- 14645A 4                   93C20     155.33   REMOTE MOUNTED POWER TRIM ACCESSORIES
                   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
            Toggle switch style. Tiller handle mounted.         These accessories can be used with applications requiring the
            Fits Mercury/Mariner 40 JET and 50/60 hp. outboards and operates the power trim  installation of the remote mounted style power trim pump.
            kit added to a base ELHO model engine.  See Tiller application chart for specific
            engine models.
                                                                POWER TRIM PUMP MOUNTING BRACKET
            POWER TRIM SWITCH KIT











                                                                     862548A 1                   99C75     166.25
              87- 18286A18                   62C83     104.72   Allows mounting to floor or transom. Includes lag bolts and washers.
                   WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov  Fits various Mercury / Mariner applications requiring a remote style power trim
            Rocker style switch with 10 ft. harness and bullet connectors. Can be surface  pump.
            mounted or flush mounted. Provides tilt control from the bow or transom location.
            Fits Mercury/Mariner models equipped with integral trim pump.



            POWER TRIM CHART - MERCURY/MARINER FOURSTROKE

            THESE ARE NOT REPLACEMENT POWER TRIMS. These kits are add‑on power trim kits designed for addition to outboard engines that were not
            furnished a power trim at time of manufacture.
            FourStroke Outboard Power Trim Kit Chart

            Model   Model Notes      Year Range  Country Serial # Range    Power Trim Kit Part Number  Port Mount Analog Trim Sender  Starboard Mount Analog Trim Sender
            8 FourStroke  232 cc.    1995 - 1998 USA  0H000058 - 0H017349    N/A            N/A
            8 FourStroke  232 cc.    1999 - 2000 USA  0G760300 - 0T178499    N/A            N/A
            8 FourStroke  323 cc.    2001 - 2004 BEL  0P086824 - 0P325499 NLA  N/A          N/A
            8 FourStroke  209 cc.    2005 - 2019  JPN  0R042475 and up       N/A            N/A
            8 FourStroke  209 cc.    2005 - 2019  BEL  0P325500 and up       N/A            N/A
            9.9 FourStroke 232 cc.   1995 - 1998 USA  0H000058 - 0H016909    N/A            N/A
            9.9 FourStroke 323 cc. w/Standard Gearcase  1999 - 2004 USA  0G760300 - 0T979999 NLA  N/A  N/A
            9.9 FourStroke 323 cc. w/Standard Gearcase  1999 - 2004 BEL  0P075166 - 0P325499 NLA  N/A  N/A
            9.9 FourStroke 323 cc. w/BigFoot Gearcase  1999 - 2004 USA  0G760300 - 0T979999 NLA  N/A  N/A
            9.9 FourStroke 323 cc. w/BigFoot Gearcase  1999 - 2004 BEL  0P075166 - 0P325499 NLA  N/A  N/A
